A battery load tester applies a substantial electrical load and checks how well battery voltage holds under that demand. A conductance tester uses a small signal to estimate available cranking performance without a traditional high-current load. For routine DIY checks, a digital conductance tester is usually faster, safer, and easier to interpret; a correctly performed load test remains useful when a high-current verification is specifically required.
The phrase “battery load tester” is sometimes used loosely for any tool that evaluates starting batteries. Technically, however, the test methods are different. A carbon-pile or fixed-load tester physically draws high current; a conductance tester estimates capability from the battery's electrical response. Knowing which method you have helps you interpret the screen and avoid claiming that one test directly performed the other.
Battery Load Tester vs Conductance Tester
| Feature | Traditional load tester | Conductance tester |
|---|---|---|
| Test principle | Applies a fixed or adjustable high-current load and observes voltage response. | Applies a small signal and analyzes conductance or related response to estimate cranking capability. |
| Battery stress | Significant temporary load; the tester and leads can become hot. | Low-stress, noninvasive test with little energy drawn from the battery. |
| Speed | Requires correct preparation, load selection, timing, and cooldown practices. | Usually produces a result in seconds after correct battery data is entered. |
| State of charge | A sufficiently charged battery is important for a valid high-load test. | Can often assess a wider range of charge states, but low charge can still affect the verdict or trigger a charge-and-retest instruction. |
| Typical output | Loaded voltage or pass/fail against the specified procedure. | Voltage, estimated available CCA, internal resistance or conductance-derived result, SOH/SOC, and a condition message, depending on the tool. |
| Best fit | Workshop verification where the battery procedure calls for a controlled high-current load. | Routine maintenance, quick screening, fleet intake, and DIY starting-system checks. |
Neither test replaces context. Battery type, rating standard, temperature, state of charge, surface charge, terminal condition, recent charging or cranking, and vehicle electrical problems can all affect the result.
How Does a Car Battery Load Tester Work?
A traditional load tester connects across the battery terminals and draws a controlled current for a specified period. The operator watches voltage while the battery is under load and compares the result with the procedure for that battery, rating, temperature, and tester.
Carbon-pile models allow the operator to adjust the load. Simpler fixed-load testers use a preset resistance and may be intended only for a limited battery range. In either case, the test must follow the tester and battery manufacturer's instructions. Applying the wrong load, testing a poorly charged battery as though it were fully prepared, or holding the load too long can produce a misleading result and unnecessary heat.
Advantages of a load test
- Observes voltage behavior while substantial current is actually being drawn.
- Useful when a service procedure specifically calls for a controlled load test.
- Can provide a direct confirmation after other checks produce uncertain results.
Limitations of a load test
- Creates heat and requires close attention to load, time, cable condition, and cooldown.
- Usually needs the battery to be adequately charged before the result is meaningful.
- Can be less convenient for repeated intake or preventive-maintenance testing.
- Requires appropriate eye protection, ventilation, polarity, and battery-safety practices.
How Does a Conductance Battery Tester Work?
A conductance tester sends a small electrical signal through the battery and analyzes its response. From that response and the battery information entered by the user, the tool estimates available cranking performance and reports a condition result. Unlike a traditional carbon-pile test, it does not have to pull a large sustained load.
That makes conductance testing practical for quick checks. Many modern testers show battery voltage, measured or estimated CCA, state of health (SOH), state of charge (SOC), and internal resistance. Some also guide cranking and charging-system tests. These values are related, but they are not interchangeable. Learn how to interpret them in our guide to CCA, SOH, SOC, voltage, and internal resistance.
Advantages of a conductance test
- Fast and low stress, with no heavy heating element.
- Suitable for frequent screening and preventive maintenance.
- Produces several useful measurements and a guided condition result.
- Works well for users who need repeatable testing without manually controlling a carbon pile.
Limitations of a conductance test
- The result depends on correct battery type, rating standard, and rated value input.
- Poor clamp contact, corrosion, surface charge, low temperature, or recent activity can skew the reading.
- It estimates high-current capability rather than applying the same sustained physical load as a carbon-pile tester.
- An unusual or borderline result may require charging, retesting, comparison, or a manufacturer-specified confirmation procedure.
Which Battery Test Do You Need?
| Your situation | Better starting point | Why |
|---|---|---|
| DIY seasonal battery check | Conductance tester | Quick, repeatable, and easy to use without applying a heavy load. |
| A car cranks slowly | Conductance battery test plus cranking and charging checks | Separates battery condition from starter draw, cable voltage drop, and charging problems. |
| Testing many batteries during intake | Conductance tester | Fast screening with minimal battery discharge and heat. |
| Service information specifically requires a high-current test | Correctly rated load tester | Performs the prescribed loaded-voltage check when used exactly as directed. |
| Borderline or conflicting results | Charge, stabilize, retest, then use the specified confirmation method | Controls common variables before condemning the battery. |
| You only own a multimeter | Voltage and voltage-drop checks, then a battery tester if capacity is in question | A multimeter measures voltage but does not by itself assess available cranking capacity. See our battery tester vs multimeter guide. |
Why Can Load and Conductance Results Disagree?
The two methods do not measure the battery in the same way, so a borderline battery can produce different verdicts. Before assuming one tester is wrong, control the setup:
- Wrong rating entry: entering SAE CCA when the label shows EN, DIN, IEC, JIS, or another standard can change the comparison.
- Wrong battery type: flooded, AGM flat plate, AGM spiral, EFB, and GEL settings may use different evaluation logic.
- Low state of charge: charge and retest when the tool or service information calls for it.
- Surface charge: recent charging can temporarily raise open-circuit voltage without proving capacity.
- Poor connections: corrosion, loose terminals, dirty clamps, and testing on unsuitable points add resistance.
- Temperature: cold reduces available cranking output and can affect the applicable test threshold.
- Recent engine start or heavy load: let the battery stabilize according to the test procedure.
Battery safety: Wear eye protection and work in a ventilated area away from flame and sparks. Do not test a frozen, leaking, swollen, cracked, or otherwise damaged battery. Confirm polarity before connecting, and follow battery, vehicle, and tester instructions.
A Practical Conductance Tester for Routine Checks

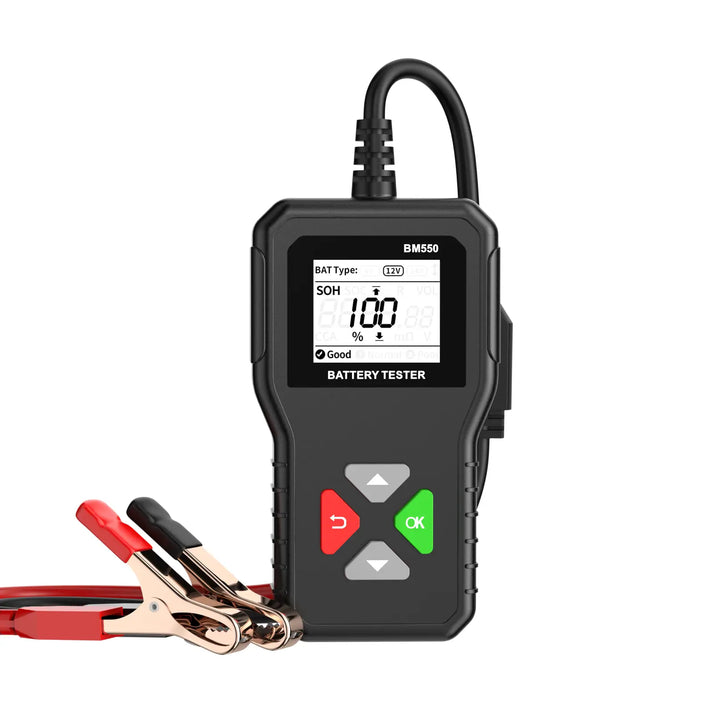

KINGBOLEN BM550
Best fit: quick condition, cranking, and charging checks on supported 6V, 12V, and 24V lead-acid batteries and systems.
Use a guided conductance test to view voltage, available CCA, SOH, SOC, and internal resistance without the heat and manual load control of a traditional carbon-pile tester.
See capabilities and limits
- Current listing covers supported 6V, 12V, and 24V lead-acid battery and system tests, with a stated 100–2000 CCA and 2Ah–220Ah range.
- Listed battery types include flooded, AGM flat plate, AGM spiral, EFB, and GEL.
- Reports battery-condition values including voltage, CCA, SOH, SOC, and internal resistance.
- It is a conductance-based tester, not a carbon-pile high-current load tester.
- It is not for testing a high-voltage hybrid or EV traction battery pack.

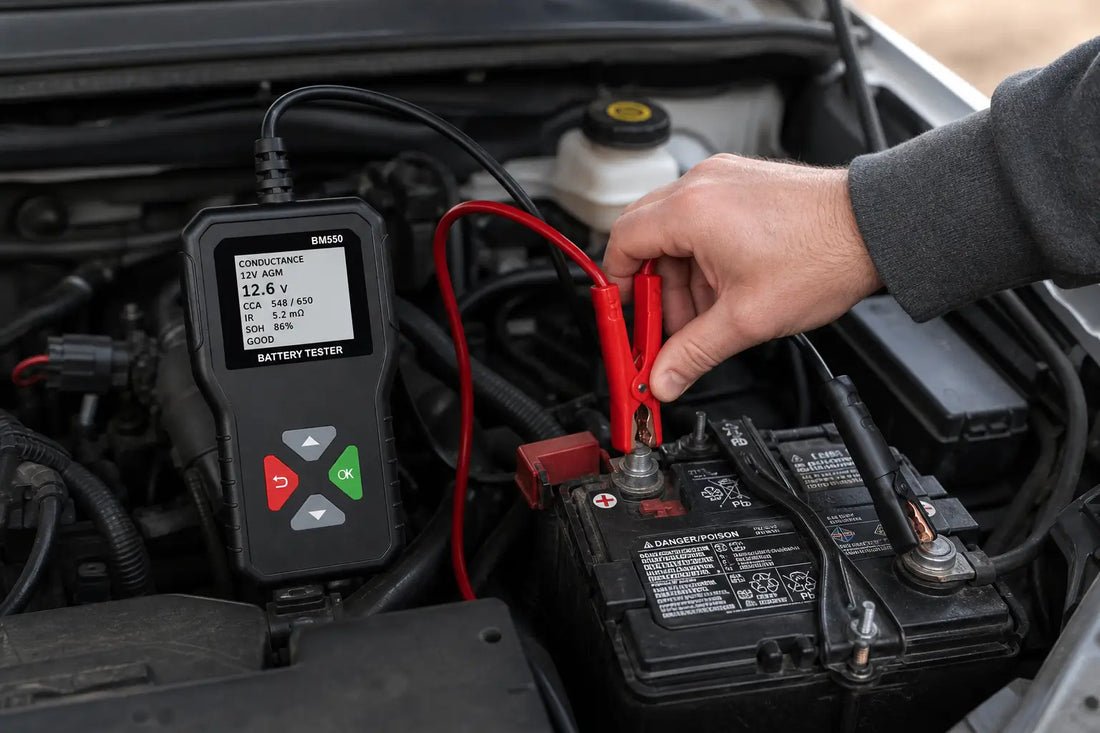

How to Get a More Reliable Conductance Test
Read the label and select the correct voltage, battery construction, rating standard, and printed rated value. Do not guess CCA from battery size.
Stop if the case is damaged or unsafe. Check that terminals and clamps are clean enough for solid metal-to-metal contact.
Red to positive and black to negative, using the connection points prescribed for the vehicle. Move the clamps if the tool reports poor contact.
Choose in-vehicle or out-of-vehicle battery test as applicable. Follow prompts for cranking and charging tests rather than using a battery result to diagnose the whole starting system.
Read the condition message together with voltage, CCA, SOH, SOC, and resistance. Charge and retest when directed before making a replacement decision.
Frequently Asked Questions
Is a conductance tester the same as a load tester?
Which battery tester is better for home use?
Can a conductance tester test an AGM battery?
Should I charge a battery before testing?
Can a battery pass a test and still cause slow cranking?
Can BM550 test an electric-vehicle traction battery?
Bottom line: Choose the method, not just the product label. A load tester verifies voltage under a controlled high-current demand; a conductance tester provides a fast, low-stress estimate suited to routine checks. For supported lead-acid batteries, the KINGBOLEN BM550 makes the conductance workflow clear while still showing the values needed for an informed decision.
Product details checked September 4, 2026. Battery procedures, ratings, and pass/fail criteria vary by battery, vehicle, temperature, and tester. Follow current manufacturer instructions.
