Use a multimeter when you need voltage and general electrical measurements. Use a dedicated car battery tester when you need a faster judgment of battery condition. A multimeter can show state of charge and charging voltage, but resting voltage alone cannot tell you how much starting ability the battery still has. A conductance battery tester can add CCA, state of health, state of charge and internal resistance.
Car Battery Tester vs. Multimeter: Quick Comparison
Both tools connect to a low-voltage automotive battery, but they answer different questions. The multimeter is a general electrical measuring tool. The battery tester is built to turn several battery measurements into a practical condition result.
| Question | Digital multimeter | Dedicated battery tester |
|---|---|---|
| What does it measure? | DC voltage; many meters also measure resistance, continuity and current. | Battery voltage plus estimated CCA, SOH, SOC and internal resistance on supported batteries. |
| Can it show state of charge? | Yes, resting voltage provides a useful estimate. | Yes, usually displayed directly as SOC. |
| Can it judge battery health? | Not from resting voltage alone; additional load or conductance testing is needed. | Designed to provide a battery-condition assessment. |
| Can it compare measured CCA with the label? | No, not by a simple voltage check. | Yes, when the correct battery rating is entered. |
| Can it diagnose other circuits? | Yes—voltage drop, continuity, resistance and other electrical tests depend on the meter. | No; it is specialized for compatible batteries. |
| Learning curve | Requires correct jack, function, range and test method. | Usually guided menus and a direct condition result. |
| Best for | General DIY electrical diagnosis. | Owners, garages and shops checking battery condition repeatedly. |
A battery can show normal resting voltage and still be weak under load. Fluke's automotive guidance states that voltage tests show state of charge, not battery condition. That is the central difference between a quick multimeter check and a dedicated battery-health test.
How to Check a Car Battery With a Multimeter
This procedure is for the vehicle's conventional low-voltage battery. It is not a procedure for opening or probing a hybrid or electric vehicle's high-voltage traction battery.
Switch off the engine, lights, climate control and accessories. Keep sparks and flames away from lead-acid batteries, and inspect the case and terminals for damage or heavy corrosion.
Put the black lead in COM and the red lead in the voltage jack. Select a DC-voltage range that safely covers a 12-volt automotive battery.
If the vehicle was just driven or charged, turn the headlights on for about one minute, turn them off and then measure. This helps avoid an artificially high surface-charge reading.
Touch the red probe to positive (+) and the black probe to negative (-). Do not let the probe tips bridge the terminals or contact nearby metal.
A conventional 12-volt lead-acid battery near 12.6 V at rest is commonly treated as fully charged; around 12.4 V is roughly three-quarters charged and around 12.2 V roughly half charged. Exact values vary with chemistry, temperature and reference chart.
A discharged battery cannot be judged fairly. Charge it using the correct method, allow it to rest and retest. If starting problems continue despite adequate charge, use a battery tester or proper load test.
Important: Never place a multimeter set to current (amps) directly across the battery terminals. That creates a short circuit through the meter and can damage the tool, leads or battery and cause injury.
What Else Can a Multimeter Check?
- Charging voltage: measure at the battery with the engine running and compare the result with the vehicle manufacturer's specification.
- Voltage drop: test cables and connections while the circuit is carrying current.
- Parasitic draw: possible with the correct current-measurement procedure, meter protection and vehicle sleep-state knowledge; this is not the same as checking battery voltage.
- Continuity and resistance: useful on unpowered circuits, fuses, switches and wiring when performed correctly.
What Does a Dedicated Car Battery Tester Add?
A conductance battery tester sends a small test signal through the connected battery and analyzes its response. On a compatible lead-acid battery, it can report measurements that a simple resting-voltage check does not provide.
- CCA: compares available cold-cranking performance with the battery's rated value.
- SOH: estimates state of health, helping show how the battery has aged.
- SOC: estimates state of charge, which helps distinguish “needs charging” from “likely deteriorated.”
- Internal resistance: rising resistance can reduce the battery's ability to deliver starting current.
- Condition result: many testers summarize the data as good, recharge/retest, monitor or replace.
How to Use a Conductance Battery Tester
Read the label for voltage, battery type and rating. Use the exact CCA or other supported standard printed on the battery rather than guessing.
Connect red to positive and black to negative. Poor contact on dirty or loose terminals can distort results.
Choose in-vehicle or out-of-vehicle testing if requested, then select the correct voltage, lead-acid type and rating.
Record voltage, CCA, SOH, SOC, resistance and the tester's overall judgment. One number without the others can be misleading.
If the battery is discharged, charge it correctly before deciding that it has failed. Follow the tester and battery manufacturer's instructions.
How to Read Battery-Test Results Correctly
| Reading | What it means | Practical next step |
|---|---|---|
| Voltage / SOC low, SOH acceptable | The battery may primarily be discharged rather than worn out. | Charge with the correct charger, allow it to rest and retest. |
| Voltage acceptable, measured CCA or SOH low | The battery may hold surface voltage but have reduced starting capability. | Confirm connections and settings, retest and plan replacement if the result remains poor. |
| Internal resistance high | The battery may struggle to deliver current even if open-circuit voltage looks normal. | Compare with the tester's overall result and manufacturer guidance. |
| Results change sharply between tests | Connections, charge state, temperature or incorrect battery settings may be affecting the measurement. | Clean and secure clamps, verify label data and repeat under consistent conditions. |
| Battery tests good but vehicle cranks slowly | The problem may be cables, grounds, starter draw, charging system or another vehicle fault. | Continue with voltage-drop and starting/charging-system diagnosis. |

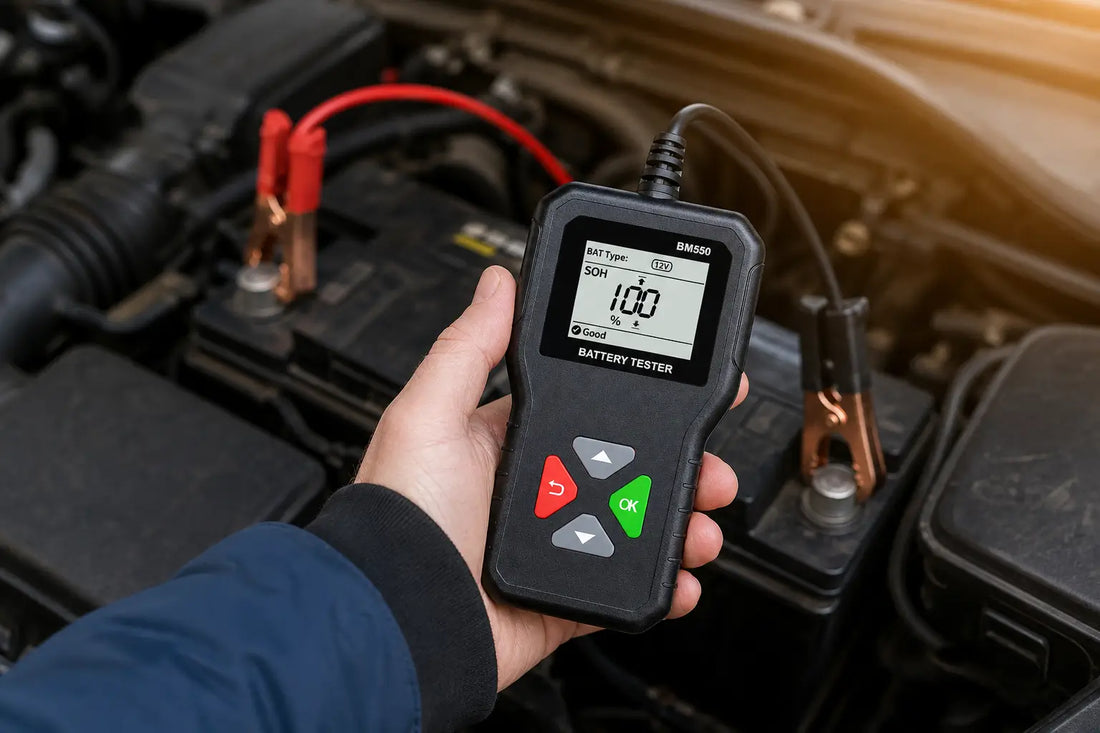

A Practical Dedicated Tester: KINGBOLEN BM550

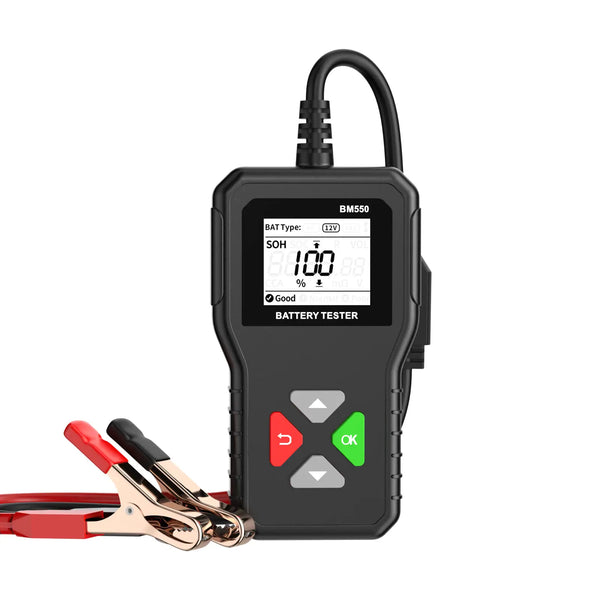

KINGBOLEN BM550
For quick battery-health checks that go beyond a voltage reading.
BM550 tests compatible 6V, 12V and 24V lead-acid batteries and displays voltage, CCA, SOH, SOC and internal resistance. Its 100–2000 CCA and 2Ah–220Ah listed ranges cover many common automotive and powersport lead-acid batteries.
- 6V / 12V / 24V
- 100–2000 CCA
- SOH + SOC
- No separate power
See compatibility and limitations
- Supports common flooded, AGM flat-plate, AGM spiral, EFB and GEL lead-acid batteries.
- Works with supported batteries in or out of the vehicle and powers from the battery under test.
- It is not designed to test high-voltage EV or hybrid traction battery packs.
- Correct battery type, voltage and printed rating are essential for a meaningful result.
Which Tool Should You Choose?
- Choose a multimeter if you want one tool for battery voltage, charging voltage, voltage drop, continuity and wider electrical diagnosis.
- Choose a battery tester if your main question is whether a compatible lead-acid battery is charged, healthy and still delivering useful cranking performance.
- Own both if you diagnose starting problems regularly. The battery tester evaluates the battery; the multimeter helps trace cables, grounds, charging and other circuit faults.
Frequently Asked Questions
Is a battery tester better than a multimeter?
Can a multimeter tell if a car battery is bad?
What voltage should a 12V car battery show?
Can a battery tester test an alternator?
Can I test the battery while it is still in the car?
Can BM550 test an electric vehicle battery?
Bottom line: A multimeter tells you what the voltage and electrical circuit are doing; a dedicated battery tester is better at answering whether the battery itself is still healthy. For repeated lead-acid battery checks, the KINGBOLEN BM550 adds CCA, SOH, SOC and internal resistance without turning the article into a product pitch before the reader understands the difference.
Product details checked September 2, 2026. Battery specifications, product features and prices may change. Follow the vehicle, battery, meter and tester manufacturers' instructions.
