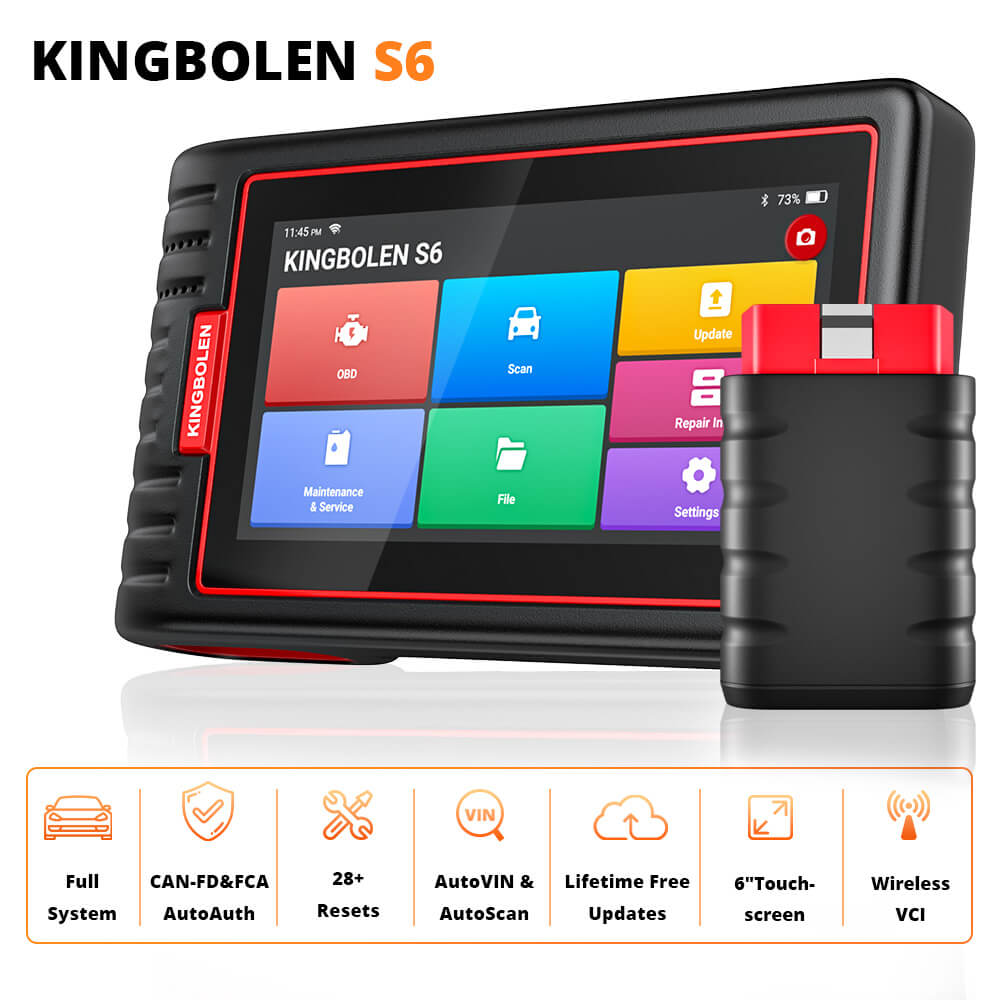

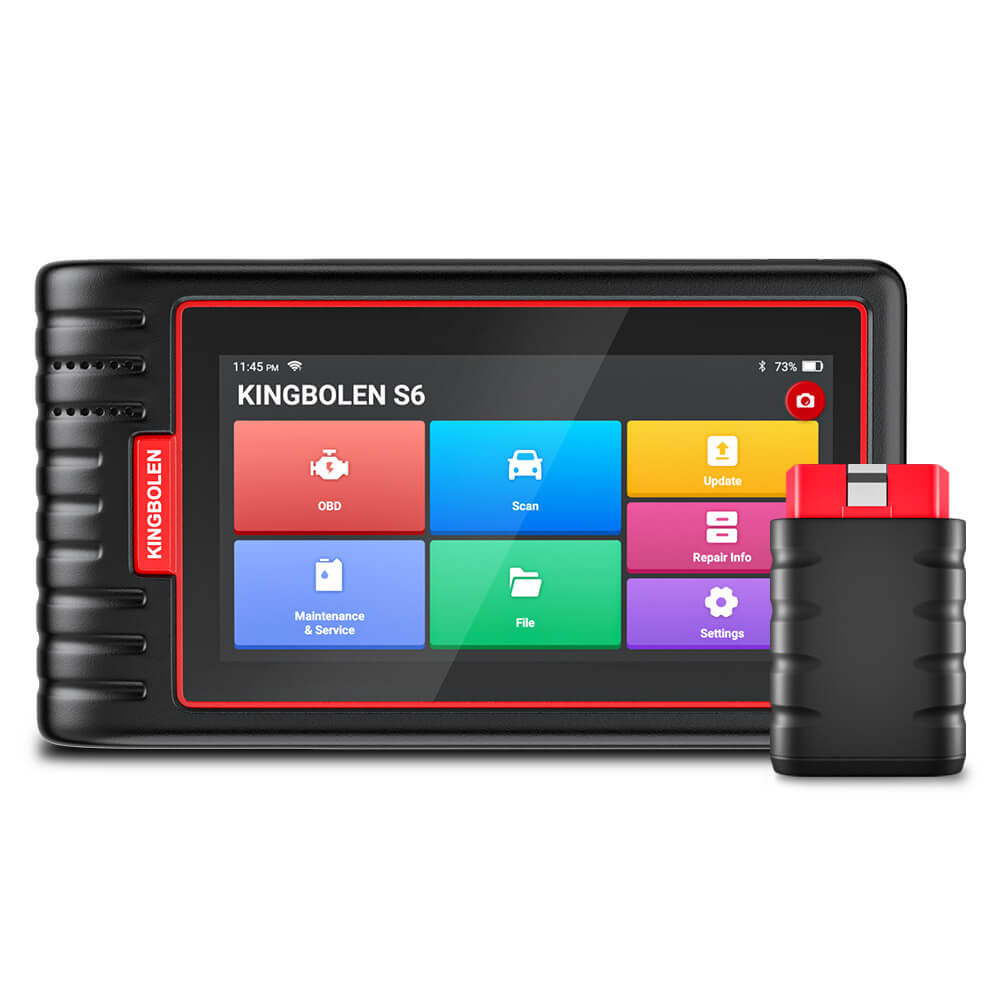

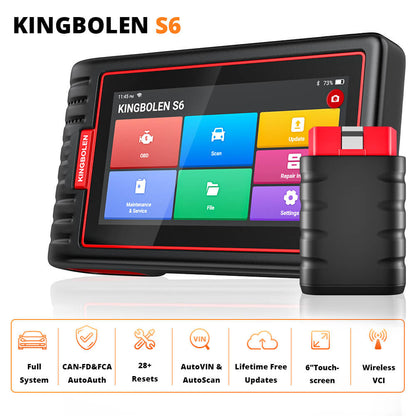

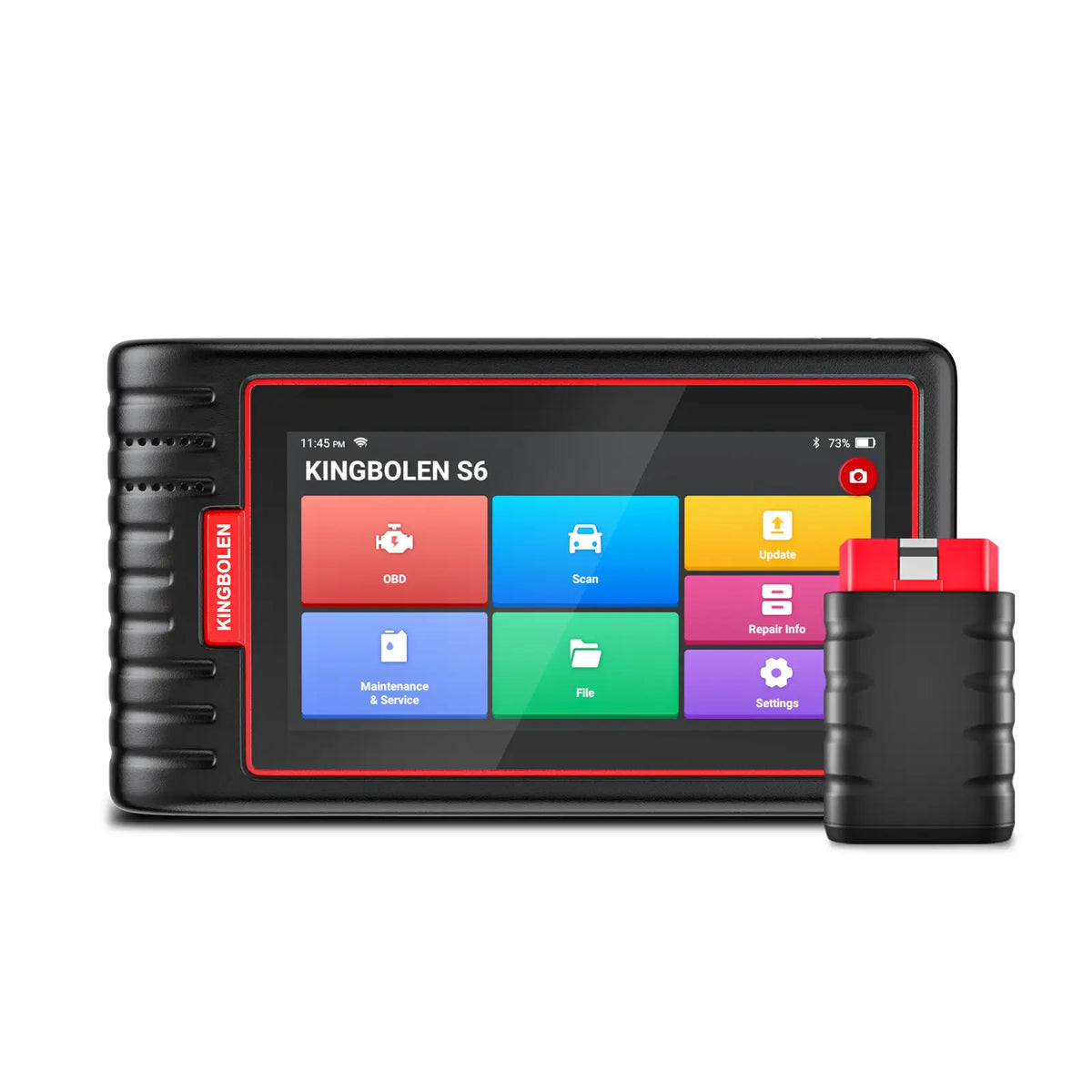

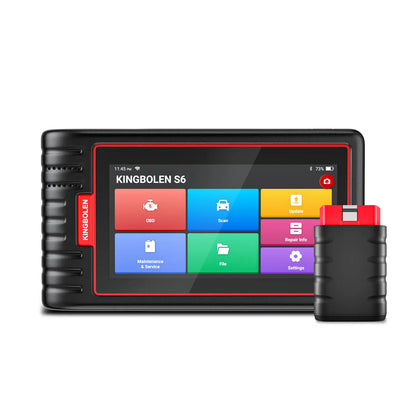

  • KINGBOLEN S6 tablet showing OBD, Scan, and Maintenance menus, with a black and red VCI dongle

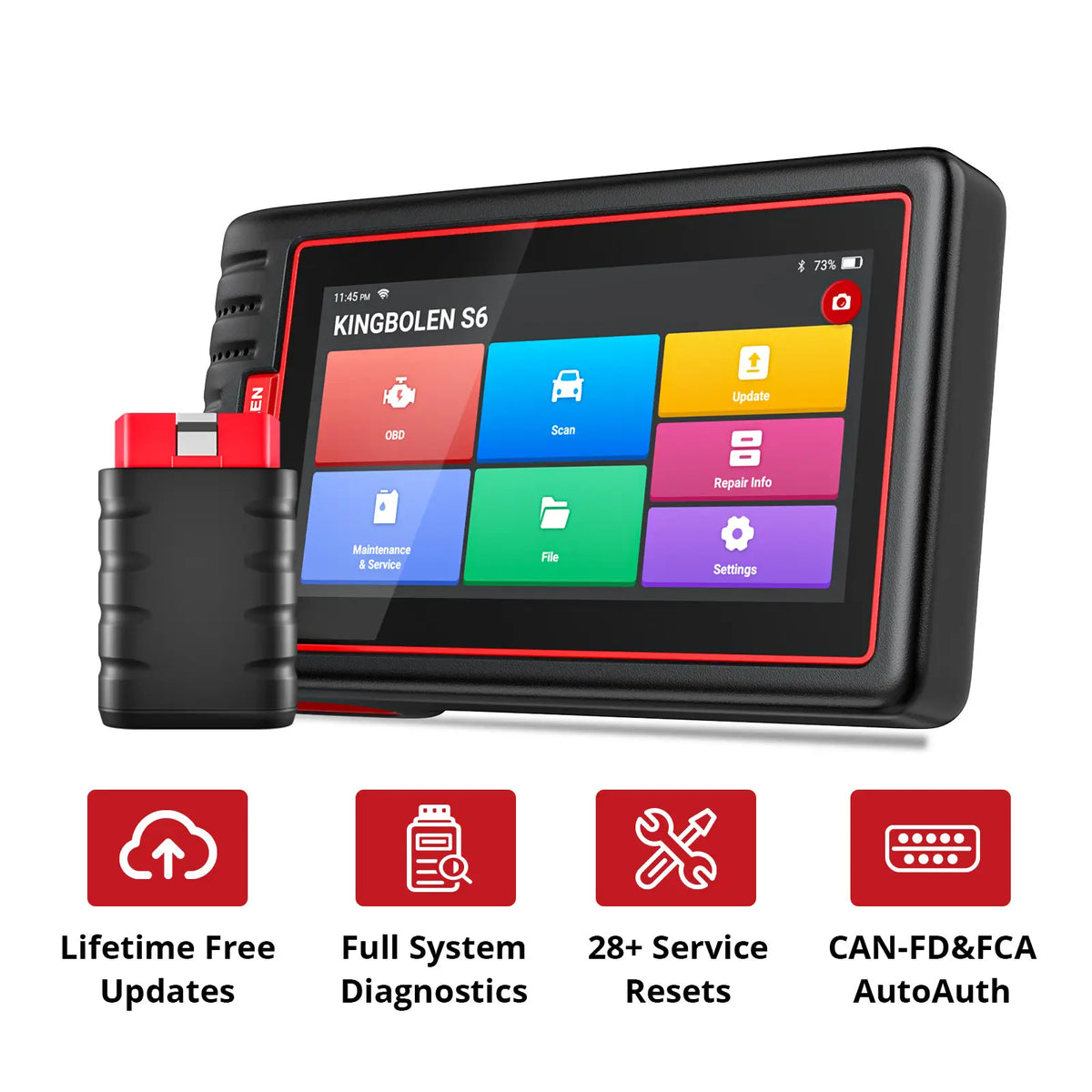

  • KINGBOLEN S6 with icons for lifetime free updates, full-system diagnostics, 28+ service resets, and CAN-FD FCA AutoAuth

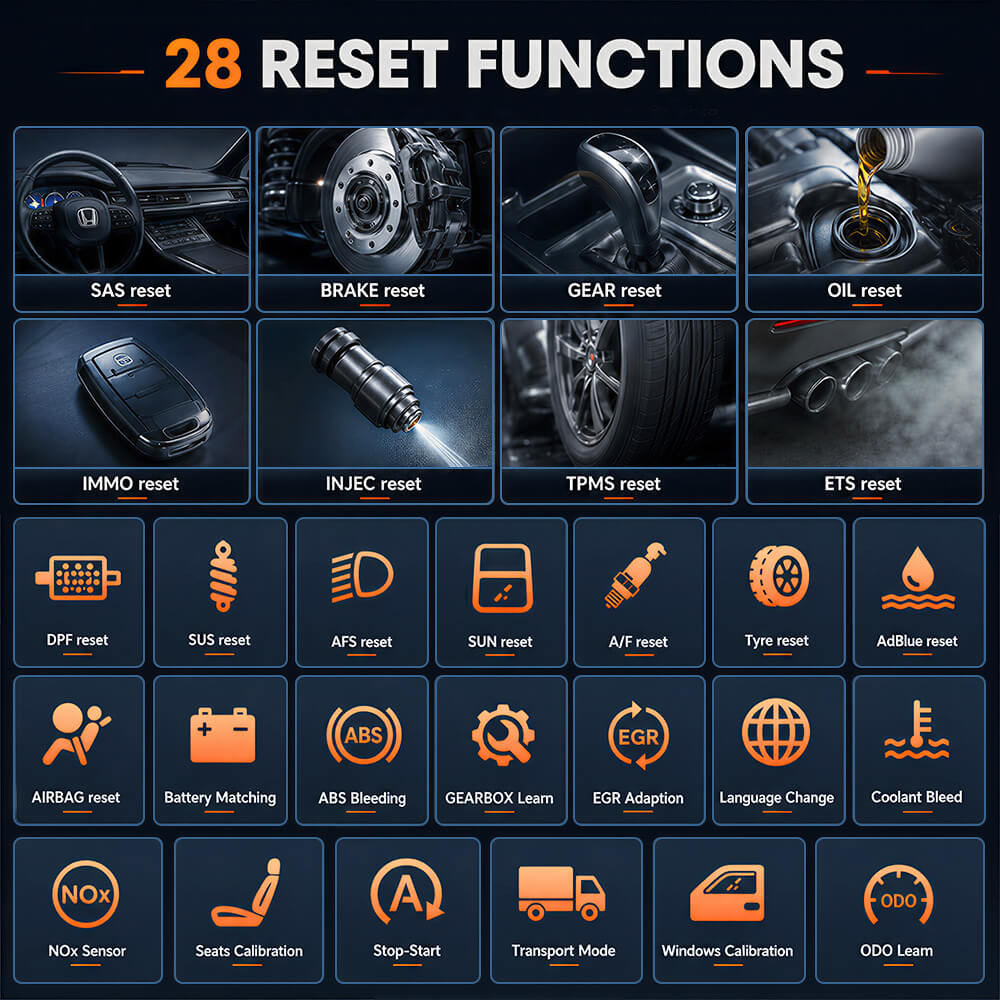

  • KINGBOLEN S6 reset list including oil, brake, SAS, TPMS, IMMO, injector, DPF, ABS bleed, and more

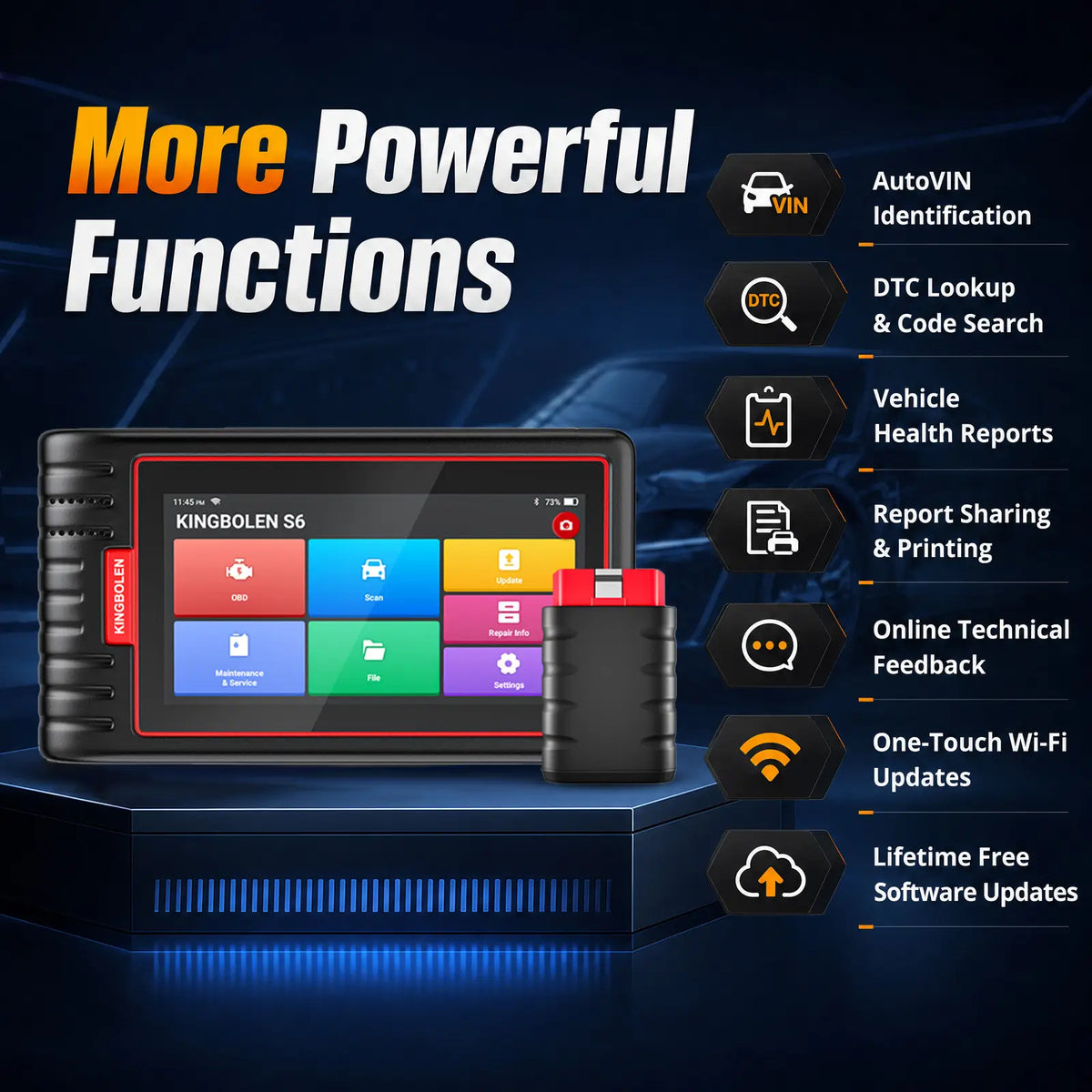

  • KINGBOLEN S6 tablet and VCI with AutoVIN, DTC lookup, health reports, Wi-Fi updates, and lifetime free software updates

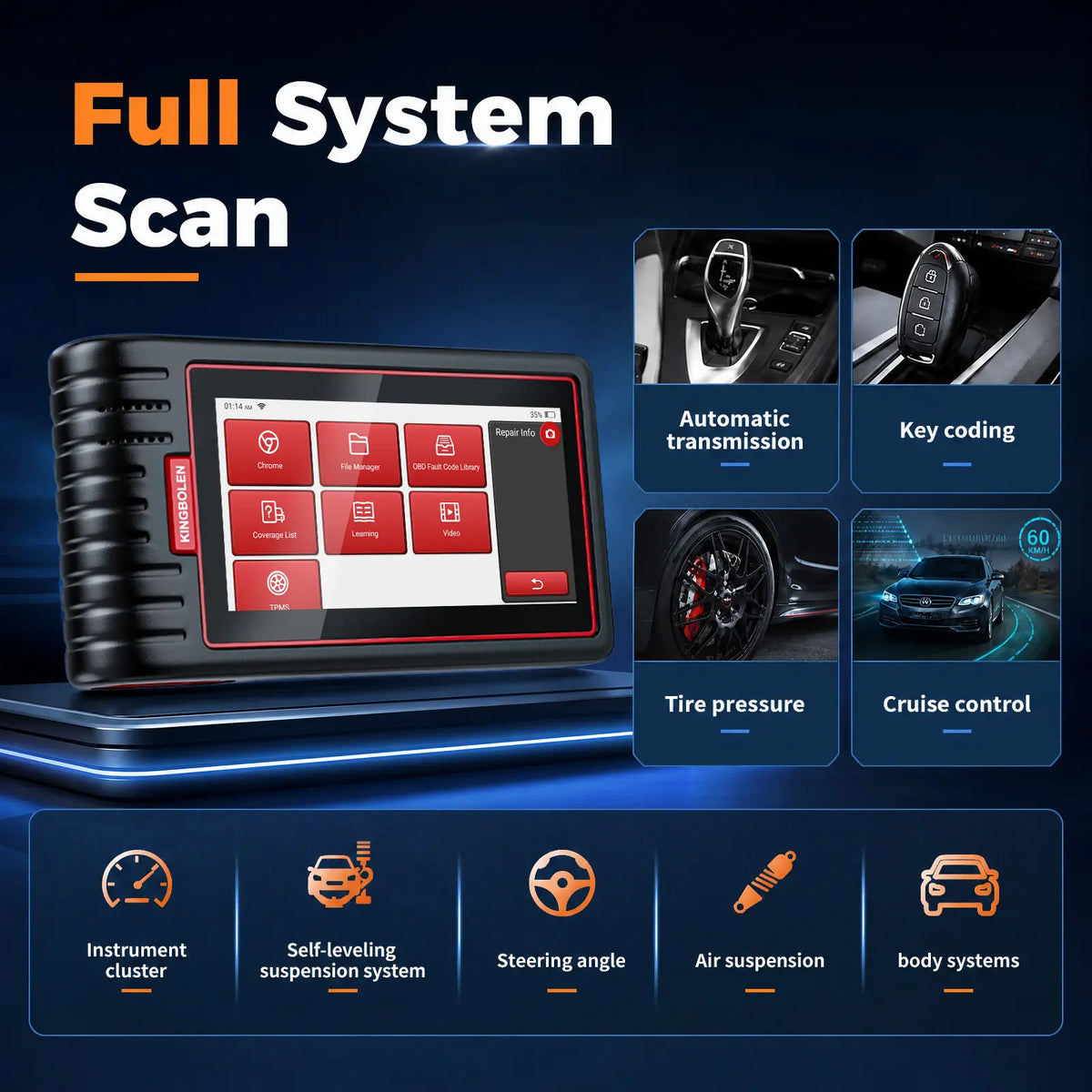

  • KINGBOLEN S6 full system scan graphic covering transmission, key coding, TPMS, cruise control, suspension, and body systems

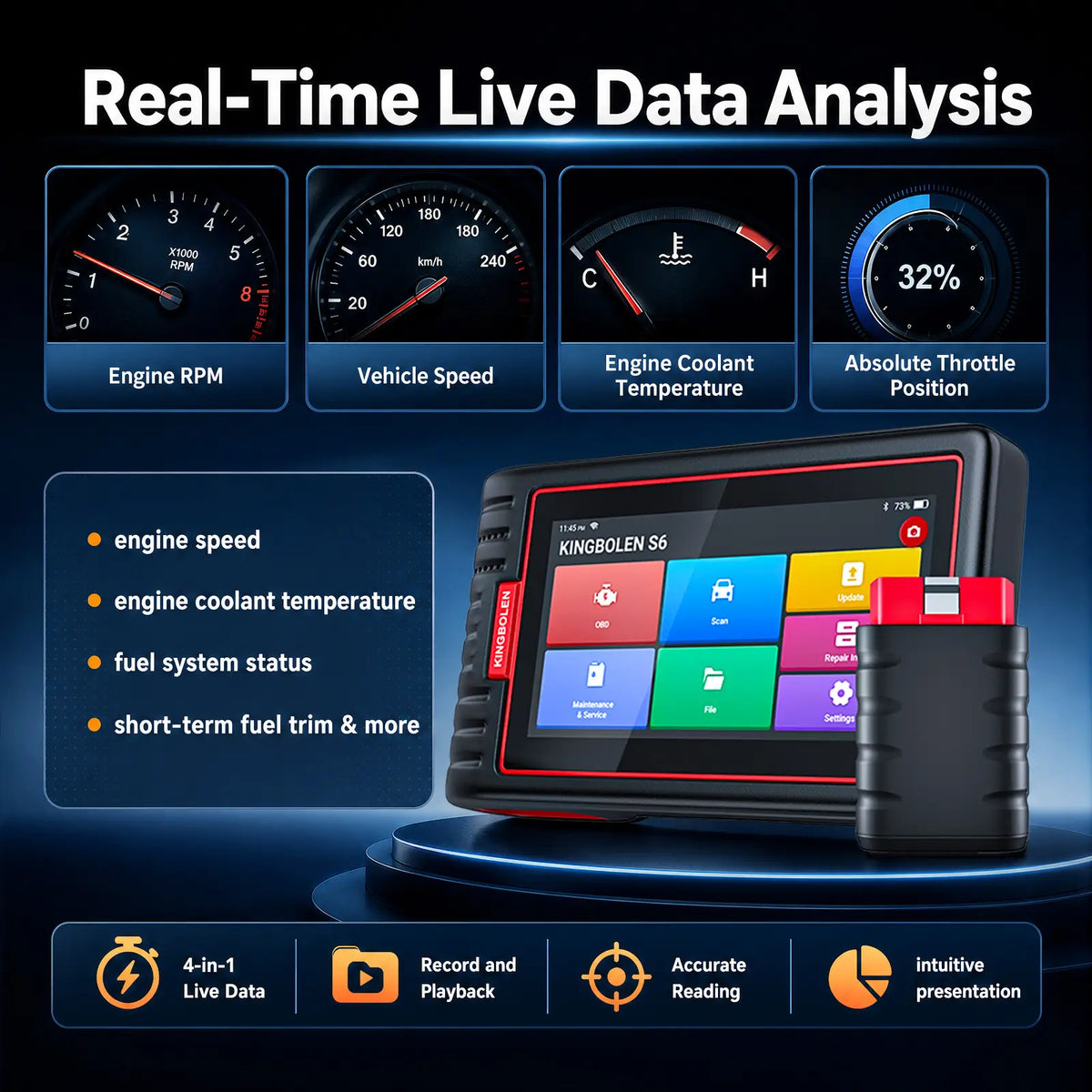

  • KINGBOLEN S6 showing live data for engine RPM, speed, coolant temperature, and throttle, with record and playback
  • KINGBOLEN S6 feature grid showing FCA login, lifetime upgrades, automatic VIN, and data recording with playback
  • KINGBOLEN S6 tablet in a shop scene for individual owners, used-car checks, and small repair shops with lifetime software updates
  • KINGBOLEN S6 tablet and VCI with a 6-inch 1280x800 display, Android 10, 2GB+32GB memory, Bluetooth 5.1, 3150mAh battery, and 2.4G/5G Wi-Fi
  • KINGBOLEN S6 tablet and VCI on a language-select screen with 17 languages, 97+ car brands, and lifetime upgrades
1 10
Kingbolen Professional

KINGBOLEN S6

$299.00 USD
$299.00 USD $359.00
Save $60 Sold out

Free shipping · 2–7 business days

The KINGBOLEN S6 is a compact yet capable all-system diagnostic scanner designed for DIY users, professional technicians, and small repair shops that need wider system access, practical service functions, and dependable daily diagnostic performance. Built on an Android 10.0 platform and equipped with a 5.99-inch touchscreen, 2GB + 32GB memory, a 4-core 1.8GHz processor, and a 3150mAh battery, S6 combines portability with efficient operation for real-world repair work. More than a basic code reader, S6 supports full system diagnostics, 28 reset functions, AutoVIN & AutoScan, CAN-FD protocol, and FCA AutoAuth, helping users work on a broader range of modern vehicles with greater efficiency. It also offers 4-in-1 live data analysis, DTC lookup, vehicle health reports, report sharing and printing, online feedback, and lifetime free Wi-Fi updates, making it a practical and long-term diagnostic solution for users who want more function without moving to a larger high-end platform.

Not sure? Tech support replies in 24h. Ask us

  • Fits-your-car guarantee Listed but won’t work on your car? Full refund, free return.
  • 30-day returns From delivery. What qualifies
  • 1-year seller warranty Defects handled by our own team.
  • Secure checkout Encrypted Shopify checkout.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • 28+ Service & Reset Functions for More In-House Maintenance
  • Full-System Diagnostics Beyond Engine Codes
  • AutoVIN & AutoScan for Faster Vehicle Scans
  • 4-in-1 Live Data for Faster Fault Analysis
  • Record & Playback Data for Intermittent Problems
  • CAN FD Support for Newer Vehicle Platforms
  • FCA AutoAuth Access for Secure Gateway Vehicles
  • DTC Lookup & Code Search for Quicker Troubleshooting
  • Vehicle Health Reports for Clearer Repair Decisions
  • Share & Print Diagnostic Reports
  • Online Technical Feedback When You Need Support
  • One-Touch Wi-Fi Updates
  • Lifetime Free Software Updates — No Annual Update Fee

Learn more

Does the KINGBOLEN S6 work with my car?

The S6 supports 97+ vehicle brands and tens of thousands of models worldwide, covering most domestic, Asian, and European vehicles manufactured after 1996 that use the standard OBD2 port. To confirm compatibility with your specific make, model, and year, please check the vehicle coverage list on our website or contact our support team.

Do I need to pay for software updates?

No. The KINGBOLEN S6 includes lifetime free software updates via Wi-Fi. There are no annual fees, subscriptions, or hidden costs. Simply connect to Wi-Fi and update with one tap to get the latest vehicle coverage and features.

What is FCA AutoAuth and do I need it?

FCA AutoAuth is a security gateway login required to perform certain advanced functions on FCA vehicles (Fiat, Chrysler, Alfa Romeo, Jeep, Dodge, Ram). The S6 supports FCA AutoAuth, but the FCA account is sold separately through the FCA official portal. If you don't own an FCA vehicle, this does not affect your use of the scanner.

Can I use the S6 on multiple cars?

Yes. The KINGBOLEN S6 is not locked to a single vehicle. You can use it on as many vehicles as you like, making it ideal for households with multiple cars, automotive enthusiasts, or professional technicians servicing different vehicles.

What is the difference between the S6 and a basic OBD2 code reader?

A basic code reader only reads and clears engine fault codes. The KINGBOLEN S6 goes far beyond that — it performs full-system diagnostics across all major vehicle modules (engine, ABS, SRS, transmission, and more), offers 28 advanced service reset functions, supports AutoVIN, live data graphing, and generates professional diagnostic reports. It is a professional-grade tool at an accessible price.

What is the warranty on the KINGBOLEN S6?

The KINGBOLEN S6 comes with a 1-year manufacturer warranty covering hardware defects. Lifetime free software updates are included separately. If you experience any issues, please contact our support team and we will assist you promptly.
 View Product Details

Product details

  • FreeLifetime updates
  • 28+Service functions
  • 97+Vehicle brands
  • 6"Touchscreen tablet

Features

Diagnostics

Diagnostics

OE-Level Full-System Diagnostics Across 97+ Vehicle Brands

Go far beyond basic engine-code reading and scan the vehicle as a complete electronic system! KINGBOLEN S6 provides full-system diagnostics across 97+ car brands and tens of thousands of models—covering Engine, Automatic Transmission, ABS, SRS (Airbag), Key/IMMO Systems, TPMS, Cruise Control, Instrument Cluster, Self-Leveling & Air Suspension, Steering Angle, Body Systems, and more:

Multi-Module Fault Scanning & Clearing: Access fault information, clear DTCs, and review system data across all available control units from one compact tablet.
Complete Vehicle Health Overview: Understand the vehicle's true overall condition and move from a dashboard warning light to the exact affected system faster.
Full OBD-II Engine & Emissions Checks: Handles routine check-engine troubleshooting and emissions readiness checks with ease.

AutoVIN & AutoScan for Faster Vehicle Scans

Save setup time before the real diagnostic work begins! KINGBOLEN S6 automates vehicle identification so DIYers and technicians can get straight to results:

Automatic Vehicle Recognition (AutoVIN): Identifies supported vehicle make, model, and year automatically upon connection.
One-Tap All-System AutoScan: Sweeps available control modules and retrieves fault information across the entire vehicle without repetitive system-by-system selection.

4-in-1 Live Data Graphing, Data Recording & Playback

See how vehicle parameters interact in real time—and capture intermittent problems that don't appear while the car is sitting in the bay:

4-in-1 Real-Time Graphical Display: Compare up to 4 live parameters on one screen (such as engine RPM, vehicle speed, coolant temperature, throttle position, fuel-system status, and fuel trim) to spot abnormal sensor trends fast.
Record & Playback Live Sessions: Record changing diagnostic data during a road test and play it back later—reducing missed clues when troubleshooting intermittent drivability complaints.
Built-In DTC Lookup & Code Search: Check the exact meaning of trouble codes directly on the scanner instead of stopping at a bare code number.

Vehicle Health Reports — Generate, Share & Print

Turn every vehicle scan into a structured, professional record that is easy to review, communicate, and store:

Structured Pre- & Post-Repair Reports: Organizes detected faults and system conditions into a clear health report to document vehicle condition before and after service.
Easy Report Sharing & Printing: Share or print diagnostic reports to explain findings transparently to customers or keep a permanent maintenance history for your garage.

Advanced Functions

Advanced Functions

28+ Service & Reset Functions for More In-House Maintenance

Handle routine maintenance, component replacements, and post-repair calibrations without switching between multiple specialty tools! KINGBOLEN S6 integrates 28+ high-demand reset and service functions:

Routine Oil, Brake, Tire & Battery Resets: Oil Reset, Brake (EPB) Reset, ABS Bleeding, Battery Matching (BMS), SAS Steering Angle Reset, TPMS Reset, and Tire Reset.
Engine, Fuel & Transmission Adaptations: Electronic Throttle (ETS) Reset, Injector Coding, DPF Reset, Gear / Crankshaft Reset, Gearbox Learn, EGR Adaptation, A/F Reset, Coolant Bleed, AdBlue Reset, and NOx Sensor Reset.
Body, Security, Lighting & Comfort Calibrations: IMMO Reset, Suspension (SUS) Reset, AFS Headlamp Reset, Sunroof Reset, Airbag Reset, Seat Calibration, Windows Calibration, Stop-Start Reset, Transport Mode, Language Change, and ODO Learn.

Protocols & Access

Protocols & Access

Built-In CAN FD Support & FCA AutoAuth Gateway Access

Stay ready for modern automotive electronic architectures and security-gateway systems:

High-Speed CAN FD Protocol: Transfers larger amounts of diagnostic data more efficiently than traditional CAN networks—extending S6 compatibility to newer vehicle platforms.
FCA AutoAuth for Secure Gateway Vehicles: Supports authorized FCA/SGW login to move beyond restricted gateway limitations and perform diagnostic and reset operations on compatible Chrysler, Dodge, Jeep, Ram, and Fiat vehicles (requires a valid AutoAuth account).

Hardware & Software

Hardware & Software

6-Inch HD Android 10.0 Tablet, Wireless Bluetooth VCI & Smart Software Tools

Built around a responsive Android 10.0 operating system and a compact 6-inch (5.99") 1280 × 800 HD touchscreen, KINGBOLEN S6 delivers smooth everyday software navigation and portable workshop hardware:

Quad-Core Android 10.0 & 2GB + 32GB Memory: Driven by a 1.8GHz 4-Core processor, 2GB RAM, and 32GB storage—providing fast boot-up times and ample space to run diagnostic software and store vehicle reports.
Bluetooth 5.1 Wireless VCI & Dual-Band Wi-Fi: Connects to the vehicle via the wireless Bluetooth VCI connector, while 2.4GHz & 5.0GHz dual-frequency Wi-Fi enables convenient one-touch Wi-Fi software updates directly on the device.
Online Technical Feedback & 18 Languages: Includes built-in Online Technical Feedback to submit tough diagnostic cases for expert follow-up, plus multi-language software support (18 languages) and a 3,150 mAh battery in an easy-to-carry form factor.

Specifications

Specifications

Hardware

Model KINGBOLEN S6
Product typeWireless all-system OBD2 diagnostic tablet with Bluetooth VCI
Display6" (5.99") capacitive touchscreen (1280 × 800)
ProcessorPowerful 4-Core, 1.8GHz
Memory / Storage 2GB RAM / 32GB ROM
Battery capacity 3150 mAh / 3.7V

System

Operating system Android 10.0
Languages 18

Connectivity

Wireless & VCI 2.4GHz & 5.0GHz dual-frequency Wi-Fi / Bluetooth 5.1 VCI connector

Updates & Access

Updates & Access

Lifetime Free Software Updates — $0 Annual Update Fee!

Avoid adding another recurring annual software bill to your diagnostic tool—a single use pays for itself! KINGBOLEN S6 includes lifetime free software updates:

No Annual Subscription Costs: Continuously receive newly released software improvements and expanded vehicle coverage via one-touch Wi-Fi without ever paying a yearly renewal fee.
Lower Long-Term Ownership Cost: Keeps your scanner current and valuable for years—making it an ideal long-term investment for DIY owners and small repair shops.
Note: Available diagnostic systems, 28+ service and reset functions, AutoVIN, CAN FD, and FCA AutoAuth gateway access vary by vehicle make, model, and year. FCA Security Gateway access requires an active AutoAuth account.

In the Box

In the Box

  • KINGBOLEN S6 Scanner×1
  • Bluetooth connector×1
  • User Manual×1
  • Data cable×1
  • Charging connector×1
  • Packing box×1
