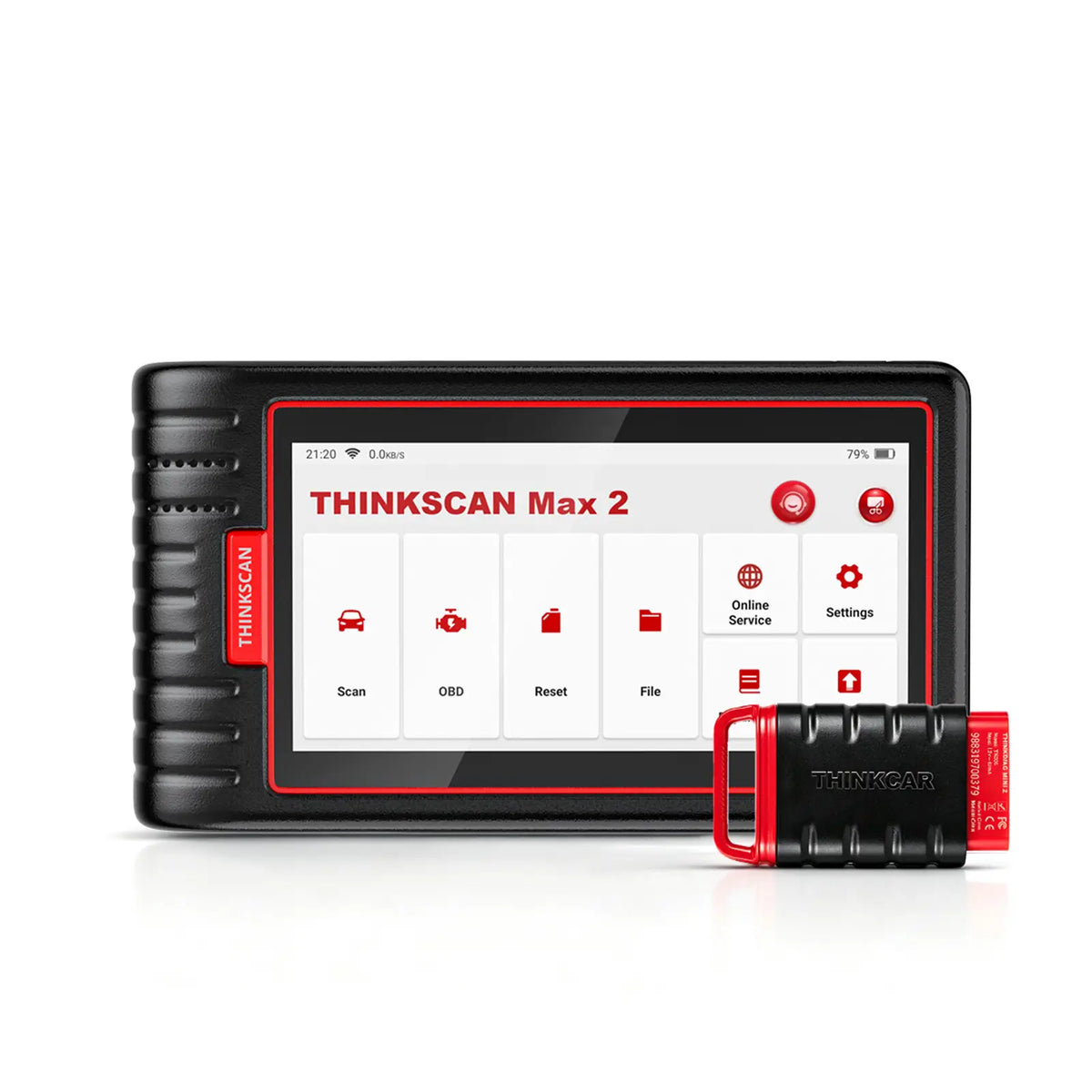

  • THINKSCAN Max 2 tablet showing Scan, OBD, Reset, and File menus, with a THINKCAR VCI dongle

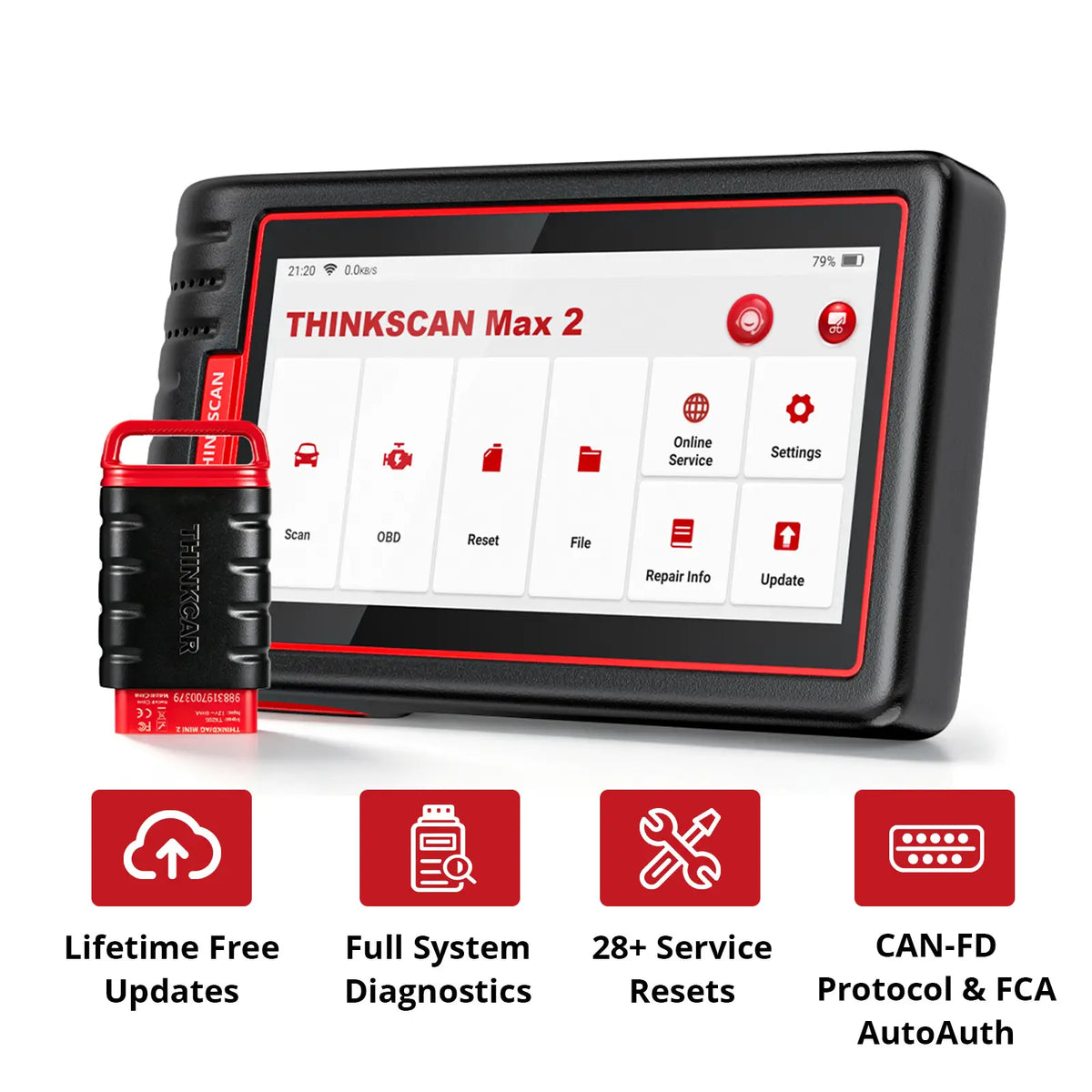

  • THINKSCAN Max 2 and THINKCAR VCI with CAN-FD, FCA AutoAuth, lifetime free updates, full-system diagnostics, and 28+ resets
  • THINKSCAN Max 2 maintenance resets including oil, brake, TPMS, SAS, BMS, AdBlue, airbag, and more
  • THINKSCAN Max 2 full-system coverage for engine, transmission, ABS, SRS, TPMS, EPB, BCM, and more
  • THINKSCAN Max 2 OBD2 functions: read and erase codes, live data, freeze frame, I/M readiness, and O2 sensor test
  • THINKSCAN Max 2 OE-level features: Auto VIN, ECU module information, lifetime update, and share by QR code or email
1 6
ThinkCar DIY

THINKCAR Thinkscan Max2

$299.00 USD
$299.00 USD
Sale Sold out
Shipping calculated at checkout.

The THINKSCAN MAX2 is an OE-level all-system diagnostic scanner built for advanced DIYers, technicians, and repair professionals who need deeper vehicle coverage without stepping up to an oversized workshop platform. Combining full-system diagnostics, 28+ maintenance services, CAN FD, FCA AutoAuth, AutoVIN & AutoScan, and complete OBD2 diagnostics, it covers everyday troubleshooting and service work in one compact wireless tool. A 5.99-inch touchscreen, Android 10 operating system, 2GB RAM + 32GB storage, and Bluetooth 5.0 wireless VCI provide a smooth diagnostic workflow around the vehicle. From scanning multiple control modules and analyzing live data to performing common resets, identifying vehicles automatically, and creating shareable diagnostic reports, THINKSCAN MAX2 gives users the essential functions needed to diagnose and service modern vehicles efficiently. With lifetime free software updates, broad multi-brand coverage, and built-in support for newer CAN FD vehicles, THINKSCAN MAX2 is designed to remain a practical diagnostic companion for both routine maintenance and more in-depth vehicle troubleshooting.

Estimated delivery: US stock 2–7 business days; other warehouses 7–30 business days. Shipping details

30-day returns: For non-defective returns, tools must be unopened, unused and not activated or registered, with original packaging and all included items. Contact us before returning. Eligibility and defect support

Complete your setup

Add optional tools. Eligible savings with SCANTOOL20 are confirmed in your cart.

Subtotal before discounts

Final discounts are confirmed in your cart.
  • Delivery estimates
  • 30-day returns
  • 1-year seller warranty
  • Lifetime Free Software Updates
  • OE-Level Full-System Diagnostics
  • 28+ Professional Maintenance & Reset Services
  • Built-In CAN FD Support
  • FCA AutoAuth for Supported FCA Vehicles
  • AutoVIN & AutoScan for Faster Diagnostics
  • Complete OBD2 Diagnostic Functions
  • 4-in-1 Graphical Live Data Analysis
  • ECU Module Information at Your Fingertips
  • Wireless Bluetooth 5.0 VCI Communication
  • Diagnostic Reports with QR Code & Email Sharing
  • 150+ Vehicle Brand Coverage
  • 15+ Interface Languages
  • 5.99-Inch Touchscreen with Android 10&2GB RAM + 32GB Storage
  • Built for Advanced DIYers & Professional Technicians

Learn more

What is the THINKSCAN Max 2?

It is a THINKCAR OE-level diagnostic tablet with a THINKCAR VCI. Use it for full-system diagnostics, OBD2 tests, and 28+ maintenance resets.

How do I connect it to a vehicle?

Plug the THINKCAR VCI into the OBD2 port, then run the tablet. The home screen includes Scan, OBD, Reset, File, Online Service, Settings, Repair Info, and Update.

What systems can it scan?

Full-system diagnostics cover modules such as engine, transmission, ABS, SRS, TPMS, EPB, BCM, AWD, battery, parking sensor, cruise control, and the instrument cluster. Available modules depend on the vehicle.

What OBD2 functions are included?

The OBD menu includes read and erase codes, freeze frame, live data, I/M readiness, O2 sensor test, monitors, vehicle info, and component test.

What reset services does it include?

The Reset menu lists 28+ maintenance services, including oil reset, brake reset, SAS, EPS, ETS, BMS, TPMS, injector, windows, seat, bleed, AdBlue, and more. Which resets run on your car depends on the year, make, and software.

Does THINKSCAN Max 2 support CAN-FD and FCA vehicles?

The product lists CAN-FD protocol support and FCA AutoAuth. Use that for vehicles that need those connections. Confirm coverage for your VIN or year/make/model before you buy.

Are software updates free?

The product lists lifetime free updates. Open Update on the tablet when you are connected to Wi-Fi.

Can it identify the vehicle and share a report?

Yes. It supports Auto VIN and ECU module information. You can share results by QR code or email.
 View Product Details

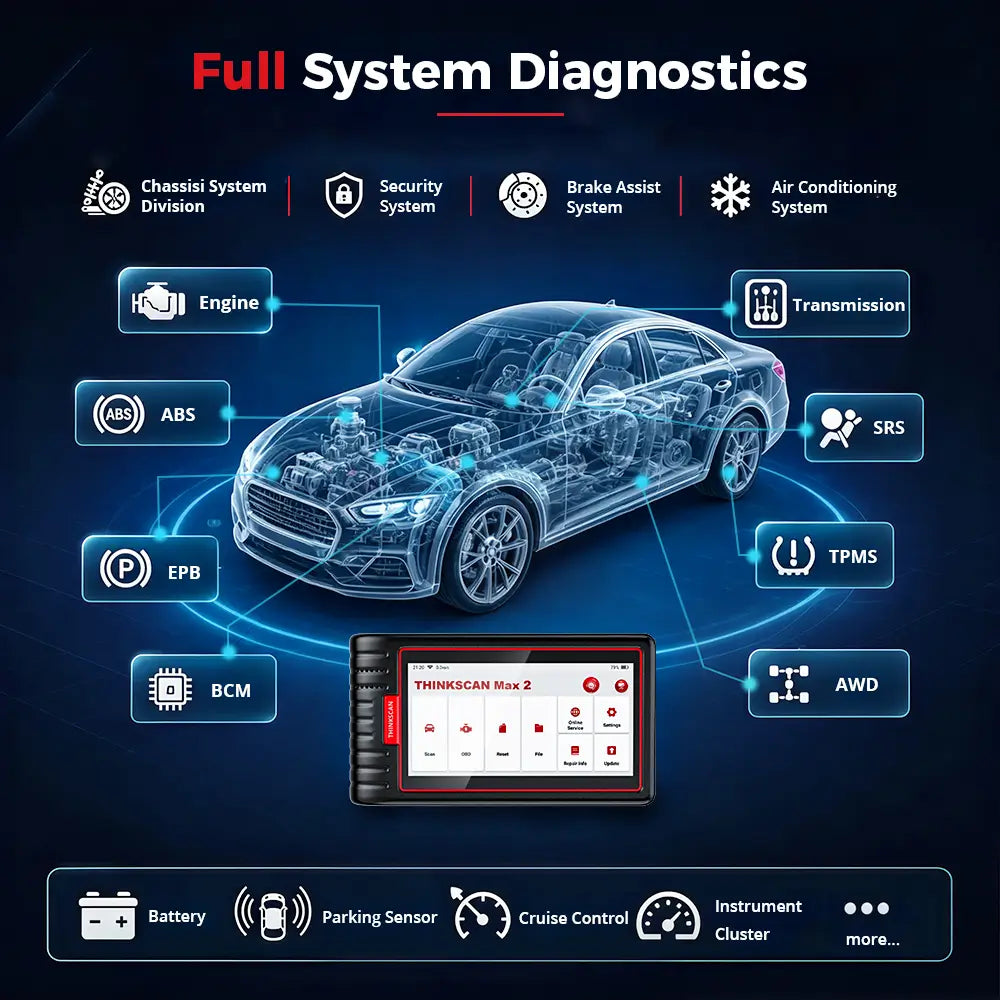

OE-Level Full-System Diagnostics
Go beyond basic engine code reading with OE-level full-system diagnostics. THINKSCAN MAX2 communicates with supported electronic control modules throughout the vehicle, including Engine, Transmission, ABS, SRS, EPB, TPMS, IMMO, A/C, BCM, Steering, Gateway, AWD, Battery, Parking Sensor, Cruise Control, Instrument Cluster, Body Systems, and more.

Access fault codes, clear DTCs, retrieve ECU information, and monitor live data across multiple systems from a single device. Whether the problem involves the powertrain, chassis, safety system, body electronics, or other supported modules, THINKSCAN MAX2 provides a broader view of vehicle health for faster troubleshooting.
28+ Maintenance Services for Everyday Repair Jobs
Handle common workshop procedures directly from the scanner with 28+ maintenance and reset functions. THINKSCAN MAX2 covers essential service jobs such as Oil Reset, Seat Calibration, Brake Reset, Electronic Throttle Relearn, EPS Reset, SAS Calibration, ABS Bleeding, Battery Matching, Injector Coding, Window Calibration, AdBlue Reset, TPMS Reset, Suspension Calibration, Gearbox Relearn, A/C Relearn, Airbag Reset, AFS Reset, Sunroof Initialization, NOx Reset, Coolant Bleeding, Air/Fuel Setting, and more.

From routine maintenance to component replacement and post-repair calibration, these service functions help technicians complete more jobs without switching between multiple specialty tools.
Built-In CAN FD for Newer Vehicle Platforms
Diagnose newer vehicle architectures without adding an external CAN FD adapter. THINKSCAN MAX2 features built-in CAN FD protocol support, enabling direct communication with compatible modern control modules and delivering more efficient ECU data exchange than conventional CAN-only diagnostic hardware.

This expanded protocol capability helps extend diagnostic coverage to supported newer vehicles, including selected GM models from 2020 and newer, while keeping the diagnostic setup simple and portable.
FCA AutoAuth for Secure Gateway Access
Work more efficiently on supported newer FCA vehicles equipped with Security Gateway systems. THINKSCAN MAX2 supports FCA AutoAuth, allowing authorized access to protected diagnostic functions where applicable.

Instead of being limited to basic read-only operations behind the security gateway, authenticated access helps technicians perform supported diagnostic and service procedures on compatible Chrysler, Dodge, Jeep, RAM, and other FCA vehicles.
AutoVIN & AutoScan — Start Diagnostics Faster
Reduce setup time with AutoVIN and AutoScan. THINKSCAN MAX2 can automatically identify supported vehicle information and begin scanning available control modules, helping users reach diagnostic results with fewer manual steps.

When automatic vehicle identification is not available, manual vehicle selection remains available, giving technicians a flexible workflow across different makes, models, and years.

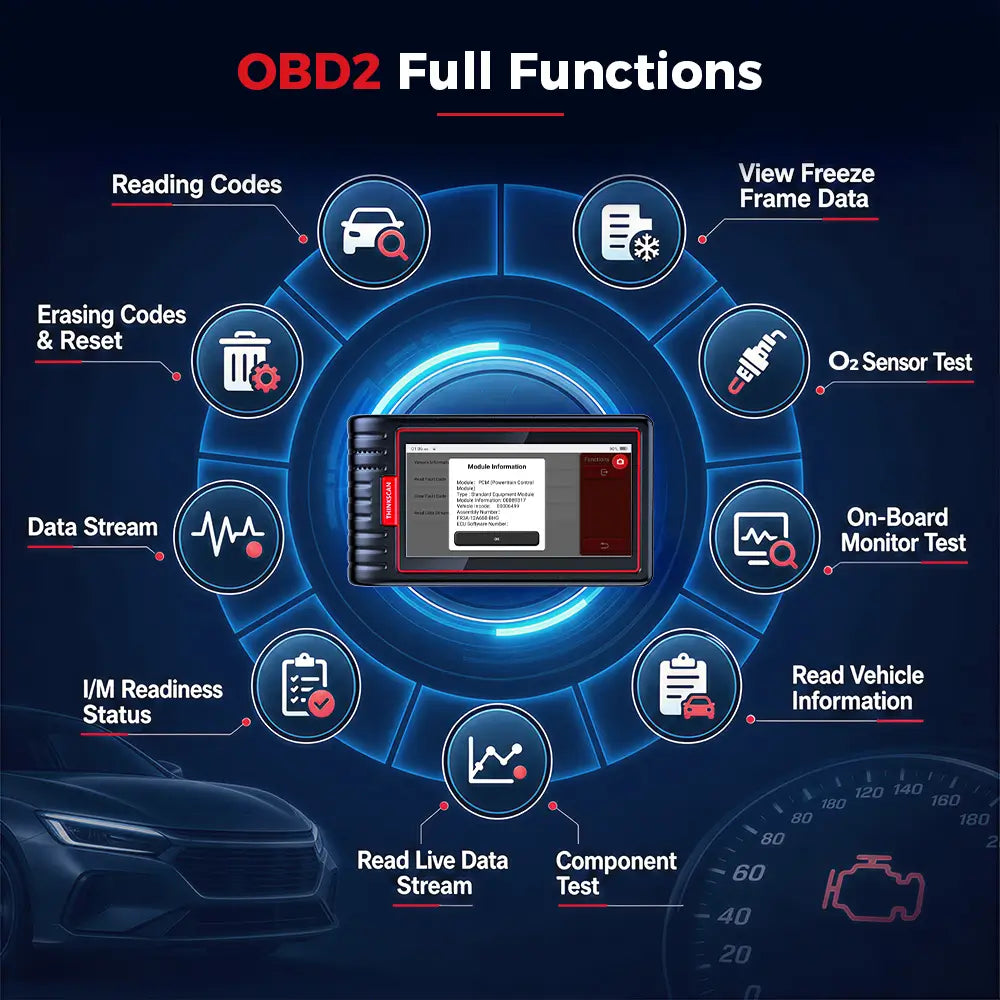

Complete OBD2 Diagnostics
THINKSCAN MAX2 also functions as a complete OBD2 diagnostic scanner for compatible 12V OBD-II vehicles from 1996 and newer. Access the essential emissions-related functions needed for check-engine diagnostics and vehicle readiness checks.

Supported functions include Reading Codes, Erasing Codes & Reset, Data Stream, Live Data Stream, I/M Readiness, Freeze Frame Data, O2 Sensor Test, On-Board Monitor Test, Vehicle Information, and Component Test.

This makes it easy to investigate warning lights, check emissions-related system status, and verify vehicle condition after repairs.
4-in-1 Live Data Graphing for Faster Analysis
See more than static fault codes with real-time live data analysis. THINKSCAN MAX2 can display multiple vehicle parameters simultaneously, helping users compare sensor behavior and operating values while the vehicle is running.

The 4-in-1 graphical data display makes it easier to spot abnormal trends and relationships between parameters. Data recording and playback also allow technicians to review vehicle behavior after a road test or diagnostic session instead of relying only on what was visible in real time.
ECU Module Information at a Glance
Quickly retrieve available ECU module information during diagnosis. THINKSCAN MAX2 can access supported control-unit identification and related module data, giving technicians additional context before clearing faults or carrying out repair work.

Combined with system scanning, DTC information, and live data, module information helps create a more complete picture of the electronic system being diagnosed.
Share Diagnostic Reports by QR Code or Email
Turn diagnostic results into records that are easy to keep and share. THINKSCAN MAX2 can generate vehicle diagnostic reports and share them through QR code or email, making it easier to communicate findings with customers, coworkers, or vehicle owners.

This gives repair shops a more professional way to document vehicle condition and keeps diagnostic information available for future reference.
Wireless VCI — Move Freely Around the Vehicle
Leave the diagnostic cable behind. THINKSCAN MAX2 uses a Bluetooth 5.0 wireless VCI to communicate with the vehicle, giving technicians more freedom to move around the workshop while monitoring diagnostic information.

The wireless setup is especially useful when inspecting components away from the driver's seat or comparing vehicle behavior during service procedures, while still keeping the scan tablet within easy reach.
Lifetime Free Software Updates
Keep the diagnostic platform current without recurring maintenance-function subscription costs. THINKSCAN MAX2 includes lifetime free software updates, providing ongoing access to supported software improvements and vehicle coverage updates.

For users who keep a scanner for years rather than replacing it every upgrade cycle, lifetime updates provide better long-term value for everyday diagnostic work.
Compact Android Platform for Daily Shop Use
Built around Android 10, THINKSCAN MAX2 combines a 5.99-inch touchscreen, 2GB RAM, and 32GB internal storage in a compact diagnostic tablet. The interface is designed for straightforward access to scanning, OBD diagnostics, reset functions, repair information, updates, and online services.

Together with the wireless VCI, this portable form factor provides the functionality of a dedicated diagnostic scanner without taking up unnecessary space on the workbench.
