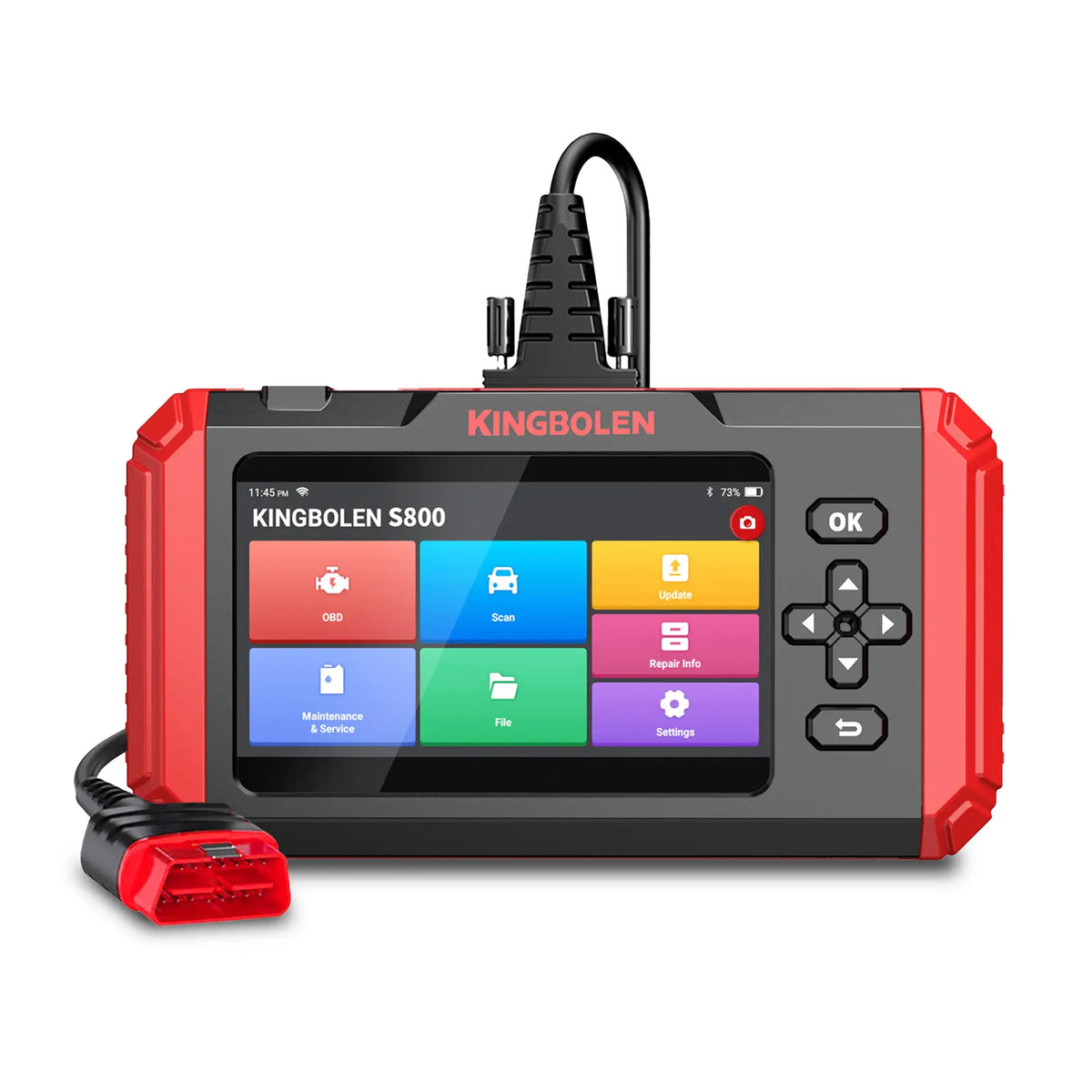

  • KINGBOLEN S800 handheld scanner showing OBD, Scan, and Maintenance menus, with a red OBD2 connector

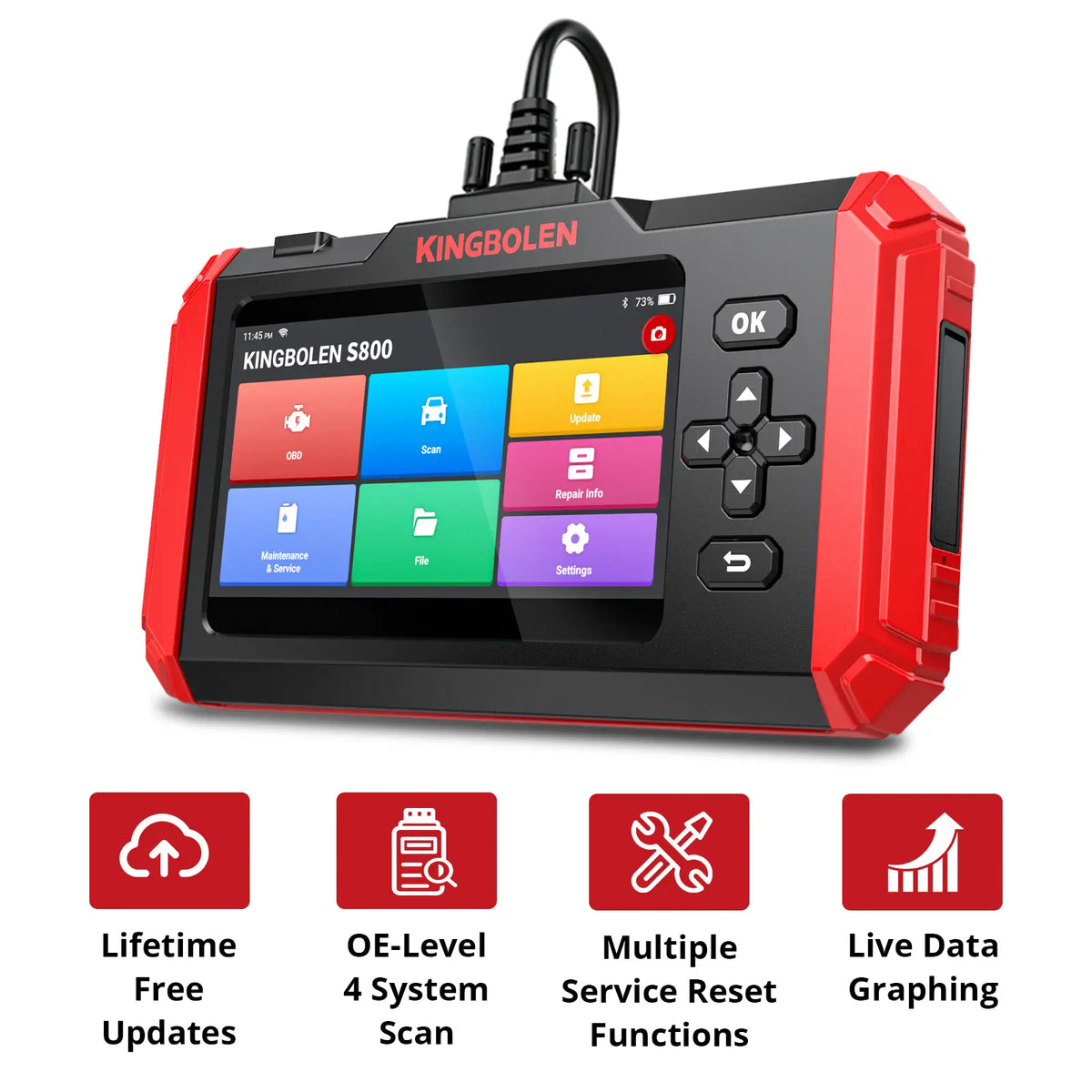

  • KINGBOLEN S800 with icons for lifetime free updates, 4-system scan, multiple service resets, and live data graphing
  • KINGBOLEN S800 maintenance resets including oil, brake, SAS, throttle, TPMS, DPF, ABS bleed, and battery registration
  • KINGBOLEN S500 S600 S800 4-system diagnostics for engine, transmission, ABS, and SRS airbag

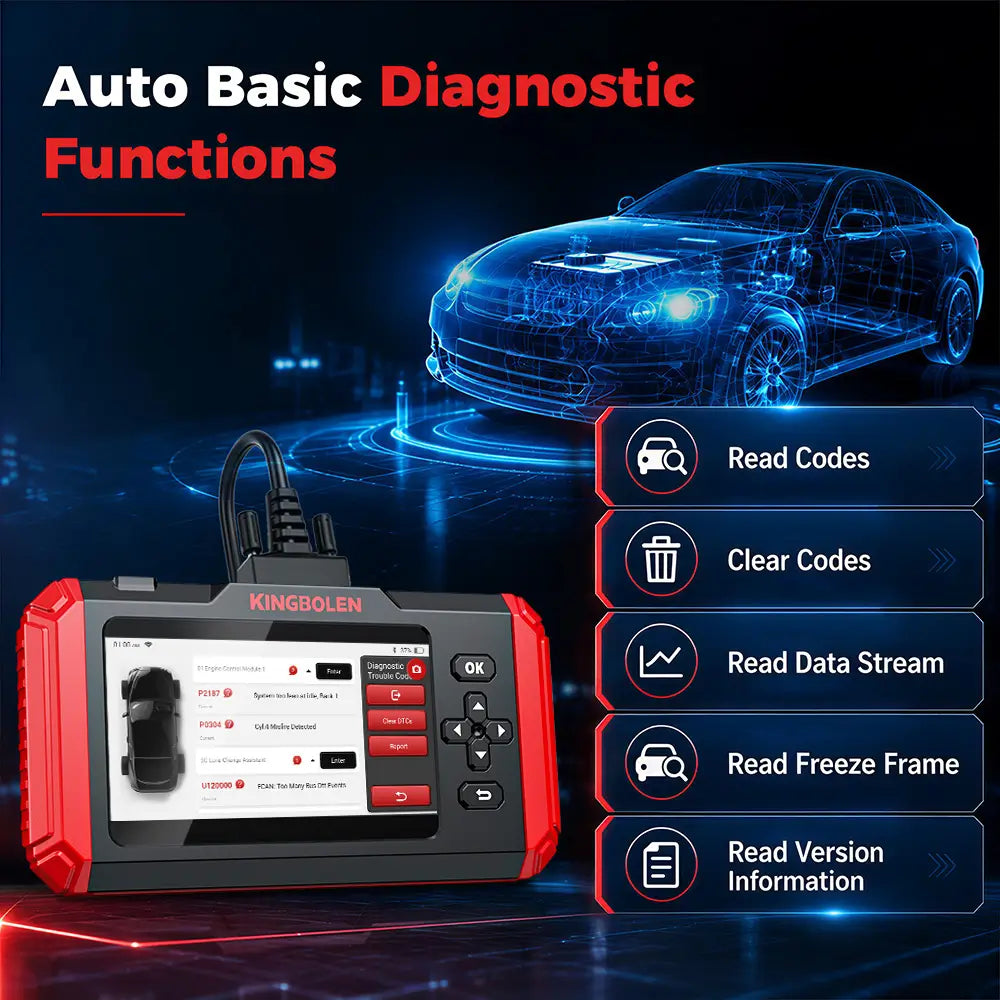

  • KINGBOLEN S500 S600 S800 showing read codes, clear codes, data stream, freeze frame, and version information

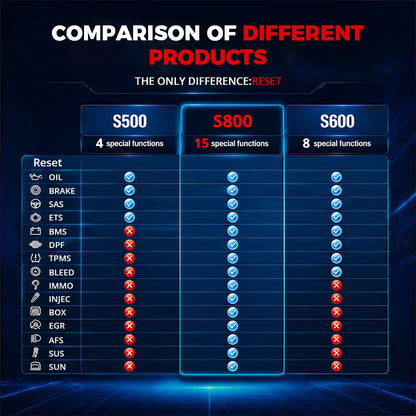

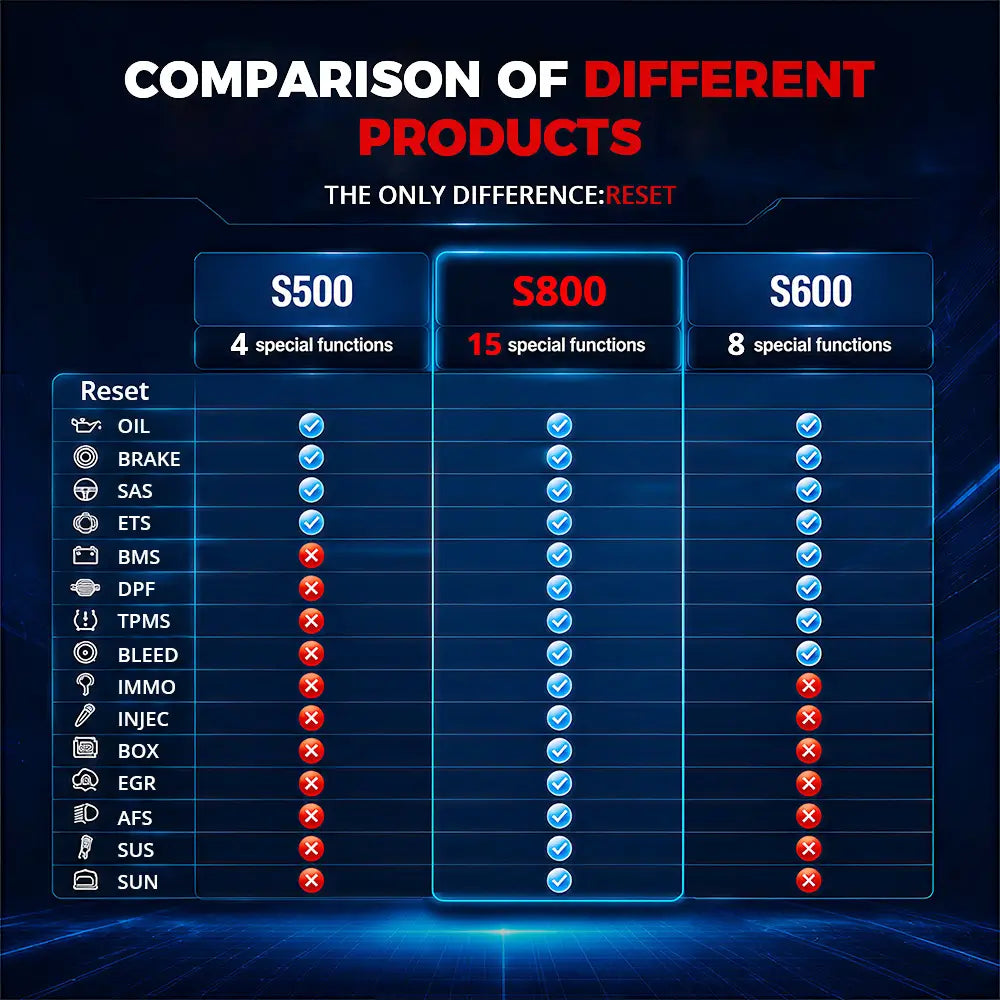

  • Chart comparing S800 15 reset functions with S500 4 resets and S600 8 resets
  • KINGBOLEN S500 S600 S800 in-hand software update screen for individual owners, used-car checks, and small repair shops with lifetime updates
  • KINGBOLEN S500 S600 S800 handheld scanner with a 5-inch screen, Android 6.0, 2GB RAM, 16GB storage expandable to 256GB, Bluetooth 5.0, and a 1500mAh battery
  • KINGBOLEN S500 S600 S800 coverage graphic for 75+ U.S., European, and Asian brands with 16 system languages
1 9
Kingbolen DIY

KINGBOLEN S500/S600/S800 4-System OBD2 Diagnostic Scanner

$129.00 USD
$129.00 USD
Sale Sold out

Free shipping · 2–7 business days

The KINGBOLEN S500, S600, and S800 are handheld 4-system OBD2 diagnostic scanners designed for DIY mechanics, advanced vehicle owners, and automotive professionals. All three models diagnose the Engine, Transmission, ABS, and SRS/Airbag systems, supporting fault-code reading and clearing, live data, full OBD2 functions, 4-in-1 data comparison, AutoVIN, diagnostic reports, and lifetime free software updates. Choose the S500 for 4 maintenance services, the S600 for 8 services, or the S800 for all 15 available reset and relearn functions. Diagnostic coverage and service availability vary by vehicle make, model, year, engine, and system configuration. Please confirm compatibility before purchase.

Model : S500 4 Reset Service

Not sure? Tech support replies in 24h. Ask us

  • Fits-your-car guarantee Listed but won’t work on your car? Full refund, free return.
  • 30-day returns From delivery. What qualifies
  • 1-year seller warranty Defects handled by our own team.
  • Secure checkout Encrypted Shopify checkout.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • 4-System Vehicle Diagnostics – Diagnose the Engine, Transmission, ABS, and SRS/Airbag systems on compatible vehicles.
  • Read Codes, Clear Codes & Live Data – Retrieve and erase system fault codes, view real-time data, and verify repairs after the underlying fault has been resolved.
  • Three Service Function Options – Choose the S500 with 4 reset services, S600 with 8 reset services, or S800 with 15 reset services to match your maintenance needs.
  • Full OBD2 Diagnostic Functions – Access standard OBD2 tests such as code reading and clearing, live data, freeze frame, I/M readiness, O2 sensor testing, and vehicle information.
  • 4-in-1 Live Data Comparison – Display and compare up to four live data parameters together to identify abnormal sensor readings and changing data trends more efficiently.
  • Smart Diagnostic Records & Reports – Capture screenshots, record the screen, share reports by QR code, and create printable diagnostic reports.

Learn more

What vehicles does the KINGBOLEN S500 / S600 / S800 support?

All three models are compatible with most 1996 and newer OBD2/EOBD vehicles, including domestic, Asian, and European models. Vehicle coverage and available functions may vary depending on the vehicle's make, model, year, and engine type.

What systems can these scanners diagnose?

All models support 4-System Diagnostics — Engine, Transmission, ABS, and SRS (Airbag) — allowing you to read and clear fault codes and view live data across all four systems.

How many service reset functions does each model include?

The S500 includes 4 service functions (OIL, BRAKE, SAS, ETS), the S600 includes 8 (adds BMS, DPF, TPMS, BLEED), and the S800 includes 15 (adds IMMO, INJEC, BOX, EGR, AFS, SUS, SUN). Available functions may vary by vehicle.

Do these scanners require a subscription?

No. All models include lifetime free software updates with no annual fees, keeping your scanner compatible with newer vehicle models.

Can these scanners turn off the Check Engine Light?

Yes. After the underlying issue is repaired, all models can clear DTCs and turn off the Check Engine Light (MIL) on supported vehicles.

Are these scanners suitable for beginners?

Yes. All models feature an intuitive interface, AutoVIN, a built-in DTC library, and guided menus — suitable for both DIY car owners and professional technicians.

Can I view live data and save diagnostic reports?

Yes. All models display live data in text and graph formats, support 4-in-1 live data comparison, and allow you to save, print, or share reports via QR code.

Why isn't a service function available on my vehicle?

Not every vehicle supports all service functions. Availability depends on the vehicle's make, model, year, engine, and ECU configuration. Please provide your vehicle information before purchasing to verify compatibility.

Do these scanners support bidirectional control (Active Tests)?

No. The S500, S600, and S800 are designed for 4-system diagnostics and maintenance services and do not support bidirectional control (Active Tests). For Active Test functionality, please consider a higher-tier scanner.

What is included in the package?

Each package includes the OBD2 diagnostic scanner, OBD2 diagnostic cable, charging cable, and user manual. Package contents may vary slightly depending on the retailer or sales channel.
 View Product Details

Product details

  • FreeLifetime updates
  • 15Service functions
  • 75+Vehicle brands
  • 4System diagnostics

Features

Diagnostics

Diagnostics

Thorough 4-System Diagnostics Across 75+ Brands for Quick Issue Resolution

Go far beyond basic engine code reading with diagnostic access to the four critical systems that matter most for drivability and safety! Read and clear diagnostic trouble codes (DTCs), monitor real-time system data, and retrieve vehicle information across 75+ North American, European, and Asian brands to reduce guesswork and avoid unnecessary part replacements:

  • Engine System Diagnostics: Read and clear engine fault codes, monitor live data, and investigate problems involving ignition, fuel injection, air-fuel mixture, and emissions—pinpointing the cause of Check Engine Light warnings, rough running, and high fuel consumption.
  • Transmission System Diagnostics: Pull transmission trouble codes and monitor live shifting data to identify issues affecting shifting performance, gearbox operation, and drivability before replacing costly components.
  • ABS & SRS/Airbag System Diagnostics: Read and clear ABS and Airbag fault codes, view live wheel-speed and crash-sensor status, verify completed brake or safety repairs, and turn off ABS and SRS warning lights with confidence.

Full OBD2 Modes for Peak Engine Efficiency & Emissions Compliance

Get a detailed view of engine health and pass your annual smog check with all 10 standard OBD2 test modes included for life:

  • Read & Clear Codes + Built-In DTC Lookup: Retrieve stored and pending fault codes, access built-in fault-code definitions for faster troubleshooting, and reset the Check Engine Light after repairs.
  • I/M Readiness, O2 Sensor & On-Board Monitor Tests: Check emissions-monitor status before an inspection, view oxygen-sensor test results, and access on-board monitor tests to keep your engine running efficiently.
  • Live Data, Freeze Frame & Component Test: Monitor real-time engine sensor values, review operating conditions recorded when a fault occurred, retrieve VIN/CID/CVN information, and activate supported components via standard OBD2 mode.

Visualize Performance (4-in-1 Graphing) & Share Results with Ease

 Real-time data monitoring provides a crucial window into your vehicle's performance, while smart reporting tools make documentation effortless:

  • 4-in-1 Live Data Graphing: Display and compare up to 4 supported live data parameters together on one graph instead of checking each value separately—making changing sensor values and abnormal trends easy to spot.
  • AutoVIN for Effortless Vehicle Identification: Automatically scans and retrieves key vehicle details on supported models to eliminate manual entry and start diagnostics faster.
  • Record, Review, Share & Print Reports: Capture screenshots and screen recordings on the device, share diagnostic reports instantly via QR code, or print reports to track repairs and provide transparent insights to customers.
Advanced Functions

Advanced Functions

Master the Basics and Beyond — Choose Your Service Level (4 / 8 / 15 Resets)

The KINGBOLEN S500, S600, and S800 share the same 4-system diagnostic capability while offering three tailored tiers of maintenance and reset coverage—so you can choose the exact version that matches your repair needs:

KINGBOLEN S500 (4 Maintenance Services): Covers the core everyday essentials—Oil Reset (reset oil life monitor after an oil change), EPB/Brake Reset (reset electronic parking brake after brake service), SAS Calibration (recalibrate steering angle sensor), and Throttle Adaptation / ETS (relearn electronic throttle body settings).
KINGBOLEN S600 (8 Maintenance Services — Includes All 4 S500 Services + 4 More): Adds BMS Reset (register a replacement battery), DPF Regeneration (clear diesel particulate filter soot buildup), TPMS Reset (reset or relearn tire pressure sensors), and ABS Bleeding (cycle ABS pump to bleed air after brake service).
KINGBOLEN S800 (15 Maintenance Services — Includes All 8 S600 Services + 7 More): Expands into advanced workshop resets—adding IMMO Service (basic immobilizer & key matching), Injector Coding (code or relearn replacement injectors), Gearbox Learning (relearn transmission adaptive values), EGR Adaptation, AFS Reset (initialize adaptive front-lighting systems), Suspension Calibration, and Sunroof Initialization.

Protocols & Access

Protocols & Access

75+ Vehicle Brands Coverage Across North America, Europe & Asia

Engineered for multi-car households and busy repair garages, the KINGBOLEN S500 / S600 / S800 series supports 75+ automobile brands worldwide:

  • Broad Regional Compatibility: Works across a wide variety of North American, European, and Asian vehicle manufacturers—helping you diagnose multiple cars with a single handheld tool.
  • Standard OBD2 & Manufacturer-Specific Access: Combines full 10-mode OBD2 engine/emissions compliance with deep 4-system (Engine, Transmission, ABS, SRS) diagnostic access.
  • Built-In DTC Fault-Code Library: Look up trouble code meanings directly on the screen without searching online.
Hardware & Software

Hardware & Software

5" Fall-Resistant Touchscreen Tablet with Quad-Core Android Hardware

Built for reliable everyday use in the garage or on the road! The KINGBOLEN S500 / S600 / S800 features a compact, drop-resistant body that is small in size and effortless to carry:

  • 5-Inch Fall-Resistant Capacitive Touchscreen: The crisp 5-inch (480 × 854) capacitive touchscreen displays 4-in-1 live data graphs, fault descriptions, and reset menus clearly right at the vehicle.
  • Fast 4-Core Processor & 2GB + 16GB Memory: Powered by Android 6.0, a 1.3GHz Quad-Core processor (MT6580 Cortex-A7), 2GB RAM, and 16GB ROM for smooth system navigation and report storage.
  • Wi-Fi, Dual-Mode Bluetooth 5.0 & Type-C Interface: Equipped with a 1,500 mAh battery, 2.4GHz Wi-Fi for one-click online updates, dual-mode Bluetooth 5.0, and USB 2.0 / Type-C (OTG supported) ports, plus multi-language interface support.

Specifications

Specifications

Hardware

ModelKINGBOLEN S500 / KINGBOLEN S600 / KINGBOLEN S800
Product type 4-System OBD2 diagnostic scanner
Display 5" capacitive touchscreen (480 × 854)
Processor 4-Core, 1.3GHz
Memory / Storage2GB RAM / 16GB ROM
Battery capacity1500 mAh
Operating voltageInput 5V 2A (2.5A max)
Operating temperature0°C to 50°C (32°F to 122°F)
Storage temperature−20°C to 60°C (−4°F to 140°F)

System

Operating system Android 6.0
Vehicle coverage75+ automobile brands
Maintenance servicesS500 (4) / S600 (8) / S800 (15)

Connectivity

Vehicle connectorWired 16-pin OBD-II
Wireless & network Dual-mode Bluetooth 5.0 / 2.4GHz Wi-Fi (802.11 b/g/n)
Interfaces USB 2.0, USB Type-C (supports OTG)

Updates & Access

Updates & Access

Lifetime Free Software Updates — $0 Recurring Annual Update Fee!

No subscriptions, no annual renewal bills, and no hidden software fees—a single use pays for itself! The KINGBOLEN S500, S600, and S800 include lifetime free online software updates via Wi-Fi:

  • $0 Recurring Annual Costs: Keep your diagnostic software and available 75+ brand coverage current without adding recurring annual software update costs to your budget.
  • Multi-Language Accessibility: Built-in multi-language support makes the scanner easy to use for DIYers and technicians across different regions.

Important Compatibility Notice: Diagnostic coverage, maintenance services, AutoVIN, Component Test, and other functions vary by vehicle make, model, year, engine, OBD2 protocol, and system configuration. A function listed for the selected scanner is not guaranteed to work on every vehicle. Please provide your vehicle information before purchasing if you need a specific system or maintenance function.

In the Box

In the Box

  • S500/S600/S800 OBD2 Scanner×1
  • User manual×1
  • Data cable×1
  • Charging cable×1
