TPMS reset, relearn, activation, and sensor programming are related, but they do not necessarily perform the same job. A reset or initialization may establish a pressure reference; a relearn changes what the vehicle remembers about sensor IDs or wheel positions; activation wakes a direct TPMS sensor so it transmits; and programming configures a compatible blank or universal sensor. Vehicle manufacturers sometimes use these words differently, so the correct procedure must come from the owner's manual or vehicle-specific service information.
Start with Direct vs Indirect TPMS
The procedure depends first on the type of tire pressure monitoring system. A direct TPMS uses a pressure sensor inside each monitored wheel. Each sensor sends data and has an identification code that the vehicle may store along with its wheel position. A direct system may therefore need sensor activation, a vehicle relearn, or both after certain tire and sensor work.
An indirect TPMS usually estimates pressure loss from wheel-speed information already available to the ABS or stability-control system. It does not use a pressure sensor inside each tire. After setting all tires correctly, the driver may need to start an initialization or calibration from a button or vehicle menu. A handheld sensor trigger tool is not the answer for an indirect system because there is no wheel-mounted pressure sensor to trigger.
Fix pressure before chasing a reset. Set cold tire pressures to the value on the vehicle's tire-and-loading placard, not the maximum molded into the tire sidewall. Inspect a tire that repeatedly loses pressure. A reset or relearn must not be used to conceal real underinflation or a system fault.
What Each TPMS Operation Actually Changes
TPMS reset or initialization
“Reset” is the least precise term in this group. On an indirect system, it often means beginning calibration after tire pressures are corrected or tires are serviced. On some direct systems and tool menus, “reset” is used as a broad label for a relearn procedure. It is therefore inaccurate to say that a reset always does nothing more than clear the dashboard light. Read what the vehicle manufacturer means by the term before choosing a tool.
TPMS vehicle relearn
A relearn changes information stored or recognized by the vehicle. Depending on the design, it may register a new sensor ID, associate existing IDs with new wheel positions, or recognize another set of wheels. Rotation does not require the same procedure on every vehicle: some vehicles auto-locate sensors, some do not display individual wheel positions, and others require a stationary or OBD procedure.
TPMS sensor activation
An activation or trigger tool sends a low-frequency signal that wakes a compatible direct TPMS sensor and causes it to transmit. During a stationary relearn, the vehicle can use that transmission to match the sensor to the wheel position being learned. Activation is not the same as programming a blank sensor, and a simple one-button activation tool should not be assumed to read IDs, pressure, temperature, battery status, or diagnostic codes unless its product documentation explicitly says so.
TPMS sensor programming
Certain universal, programmable, or cloneable aftermarket sensors are supplied without the final vehicle-specific configuration. A compatible programming tool writes the required application protocol and ID information into that sensor. OE-style, direct-fit, or preprogrammed multi-application sensors may not require this step. After programming introduces a new ID, the vehicle may still require its own relearn method; programming the sensor and teaching the vehicle are separate operations.
Frequency is only one compatibility detail. Two sensors can both operate at 315 MHz or 433 MHz and still use different protocols or applications. Match the vehicle make, model, year, system type, sensor specification, tool coverage, and prescribed procedure—not frequency alone.
The Three Common Direct-TPMS Relearn Methods
ATEQ groups direct-system relearns into three broad methods. Manufacturers can use different steps or combine methods, so these categories explain the workflow rather than replace model-specific instructions.
The vehicle recognizes sensor IDs while driven or after another prescribed automatic process. A trigger tool may not be required for registration, although checking sensor operation can still be useful.
The parked vehicle is placed in learn mode, then each compatible sensor is activated in a specified order so the vehicle can associate it with a wheel position.
A TPMS-capable tool reads or collects sensor IDs and transfers them to the vehicle through the diagnostic connector. A basic engine-code reader cannot be assumed to do this.
Which TPMS Procedure Do You Need?
Use the service event—not the wording on a marketplace listing—to narrow the next step. The table below is a decision guide; the owner's manual and verified tool coverage remain authoritative for the exact vehicle.
| What happened? | Likely next step | Important limit |
|---|---|---|
| Tire pressure was low, but wheels and sensors did not change | Inflate cold tires to placard pressure, check for leakage, then drive or initialize only as the manual specifies. | A relearn will not repair a leak or a failed sensor. |
| The weather turned cold and the warning appeared | Measure and correct cold pressure first. The light may clear after the vehicle sees correct pressure. | Do not use the pressure printed on the tire sidewall as the vehicle target. |
| The tires were rotated | A position relearn may be needed if the vehicle tracks individual wheel locations; use its auto, stationary, or OBD method. | Not every vehicle requires a tool after rotation. |
| A seasonal wheel set was installed | The vehicle may need to recognize the stored IDs or learn a different set, depending on its capacity and procedure. | Correct frequency alone does not prove that the sensors are compatible. |
| An OE-style or preprogrammed replacement sensor was installed | Sensor programming may be unnecessary, but the new ID commonly needs the vehicle's relearn process. | Confirm that the sensor is already configured for the exact application. |
| A blank universal or cloneable sensor was installed | Program it with a compatible sensor-programming tool, then complete any required vehicle relearn. | An activation-only tool cannot perform this programming step. |
| The vehicle uses indirect TPMS | Correct all pressures and start the manufacturer-specified initialization or calibration. | There are no direct pressure sensors at the wheels for a trigger tool to activate. |
| The warning flashes and then remains on, or a malfunction message appears | Follow the vehicle's diagnostic procedure and check sensor communication, compatibility, and stored faults. | Repeated resets should not replace diagnosis. |
A Typical GM Stationary Relearn Workflow
Many compatible GM vehicles use a parked, horn-confirmed sensor matching sequence. For example, a GM owner manual describes placing the vehicle in relearn mode, activating the sensors in the order driver-front, passenger-front, passenger-rear, then driver-rear, and listening for confirmation at each position. Interfaces, timing and entry steps vary by model and year, so use the sequence published for the exact vehicle.
Confirm that the vehicle has a compatible original direct TPMS, that its sensor specification is supported, and that a stationary activation procedure is prescribed.
Set the vehicle safely in Park, follow its manual to enter TPMS learn mode, and confirm the vehicle's indicator, message, or horn response.

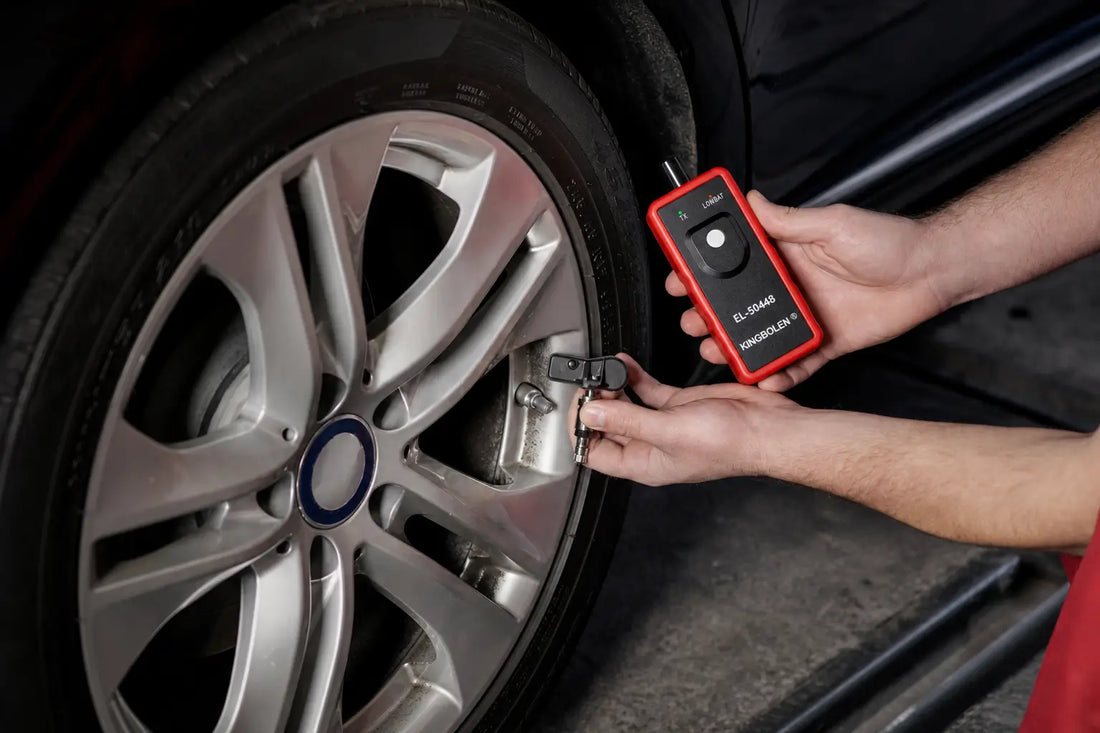

Hold the compatible activation tool at the tire sidewall near the valve stem and activate one wheel at a time. Wait for the vehicle's confirmation before moving on.
Exit learn mode as instructed, set every tire to placard pressure, and confirm that the displayed locations and warning state are correct during the prescribed verification drive.
This workflow teaches the vehicle the position of compatible transmitting sensors. It does not configure a blank programmable sensor, repair a dead sensor battery, correct the wrong protocol, or diagnose every reason for a TPMS malfunction.

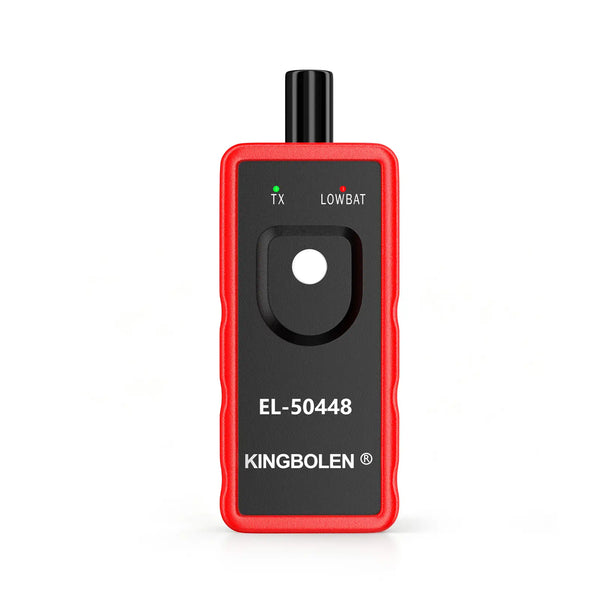

For Compatible GM Stationary Relearns: KINGBOLEN EL-50448
KINGBOLEN EL-50448
A compact one-button option for selected compatible GM-series vehicles with original 315 MHz or 433 MHz direct TPMS.
Use it while a supported vehicle is in TPMS learn mode to activate each compatible factory sensor and help the vehicle store the four wheel positions after supported tire service. It does not program blank sensors or replace a full-system diagnostic scanner.
- Selected GM applications
- 315 / 433 MHz activation
- One-button workflow
- Compact relearn tool
See compatibility and limitations
- The current listing names selected Opel, Buick, Cadillac, Chevrolet, GMC, and other compatible GM-series vehicles with approximate coverage of model years 2006–2023; this is not a claim of universal coverage.
- Designed for compatible original factory 315 MHz or 433 MHz TPMS. Frequency alone is not enough to confirm fit.
- Not listed for heavy trucks or external and aftermarket TPMS systems.
- Activates compatible sensors for relearn; it does not program blank TPMS sensors.
- It is not a full-system OBD2 diagnostic scanner and does not replace fault diagnosis.
- A 9V battery is required and is not included.
Why a TPMS Relearn May Fail
- The vehicle is not actually in learn mode. A menu selection, ignition sequence, brake-pedal sequence, key-fob action, or scan-tool command may be required.
- The sensor or tool is not compatible. Matching 315 MHz or 433 MHz labels do not guarantee a matching vehicle protocol or application.
- A blank replacement sensor was never programmed. An activation tool cannot supply missing vehicle-specific programming.
- The sensor is damaged or not transmitting. A relearn cannot revive a failed internal battery or repair physical damage.
- The tool is positioned incorrectly or its battery is weak. Follow the tool instructions, work close to the valve stem, and keep other transmitting equipment away when interference is suspected.
- The order or time window was missed. Some stationary procedures allow only a limited time and require a specific wheel order.
- The warning reflects another fault. Incorrect pressure, a leak, an unmonitored spare, receiver problems, a stored TPMS fault, or an incompatible wheel-and-sensor setup may require further diagnosis.
Frequently Asked Questions
Does resetting TPMS simply turn off the warning light?
Do I need a TPMS relearn after every tire rotation?
Can a TPMS activation tool program a new sensor?
Is 315 MHz or 433 MHz enough to choose a TPMS tool?
Can a normal OBD2 code reader reset TPMS?
Will EL-50448 work on every GM vehicle from 2006 to 2023?
Why is the TPMS light still on after a successful relearn?
Bottom line: Identify the TPMS type and what changed before choosing a procedure. Reset or initialization may establish a reference, relearn changes what the vehicle recognizes, activation wakes a direct sensor, and programming configures certain replacement sensors. For a verified compatible GM stationary-relearn application, the KINGBOLEN EL-50448 provides the activation step without pretending to be a sensor programmer or full diagnostic scanner.
