To use a TPMS relearn tool on a compatible GM vehicle, first correct all tire pressures, place the vehicle in TPMS learn mode, then activate the sensors in this order: left front, right front, right rear, left rear. Wait for the horn or on-screen confirmation at every wheel. The exact way to enter learn mode and the allowed time vary by model and year, so check the owner's manual before starting.
A TPMS relearn tool does not simply erase a warning light. On many direct TPMS systems, it wakes each wheel sensor while the vehicle is in a special learning mode, allowing the vehicle to associate a sensor with a wheel position. If you are unsure whether you need a reset, relearn, activation, or sensor programming, read our TPMS reset vs relearn vs programming guide first.
When Do You Need a TPMS Relearn Tool?
A relearn may be required after a tire rotation, sensor replacement, seasonal wheel change, or another service that changes the sensors or their positions. It is not required in exactly the same situations on every vehicle. Some vehicles learn automatically while driving, some use a stationary procedure, and others require a TPMS-capable scan tool connected to the OBD port.
| Situation | Likely action | What a trigger tool cannot fix |
|---|---|---|
| Tires were rotated | Perform a position relearn if the vehicle stores individual wheel locations and does not update them automatically. | Low pressure, a leaking tire, or a failed sensor. |
| A compatible replacement sensor was installed | Complete the vehicle's prescribed relearn so it recognizes the new sensor ID. | Programming a blank universal sensor unless the tool explicitly supports programming. |
| The warning came on in cold weather | Measure and correct cold inflation pressure first. A relearn may not be needed. | Temperature-related pressure loss or a puncture. |
| The light flashes before staying on | Diagnose a possible system or sensor fault using the vehicle's service procedure. | Communication faults, incompatible sensors, or dead sensor batteries. |
Do not relearn around an actual pressure problem. Set cold pressures to the tire-and-loading placard on the vehicle, not the maximum pressure printed on the tire sidewall. Inspect any tire that repeatedly loses air.
Before You Start: Five Checks
- Confirm that the vehicle uses direct TPMS. An indirect system estimates pressure loss from wheel-speed data and normally uses a menu or button calibration rather than a wheel-sensor trigger tool.
- Look up the exact procedure. The ignition sequence, menu path, wheel order, confirmation signal, and time limit can differ by model and year.
- Confirm tool and sensor compatibility. A matching 315 MHz or 433 MHz label alone does not prove that the vehicle protocol and sensor are supported.
- Check the tool battery. A weak 9V battery can shorten activation range or cause inconsistent operation.
- Work safely. Park away from traffic, apply the parking brake, select Park, and keep the tires at the correct cold pressure.
How to Use a TPMS Relearn Tool on a Compatible GM Vehicle
The steps below describe the common GM stationary relearn pattern. They are a practical example, not a replacement for the manual for your exact vehicle.
Set all four tires to placard pressure. Park safely, switch off unnecessary wireless devices near the wheels, and have the relearn tool ready.
Use the driver-information menu or the ignition, key-fob, or control sequence specified by the owner's manual. Continue only after the vehicle confirms learn mode with a message, indicator, or horn chirp.

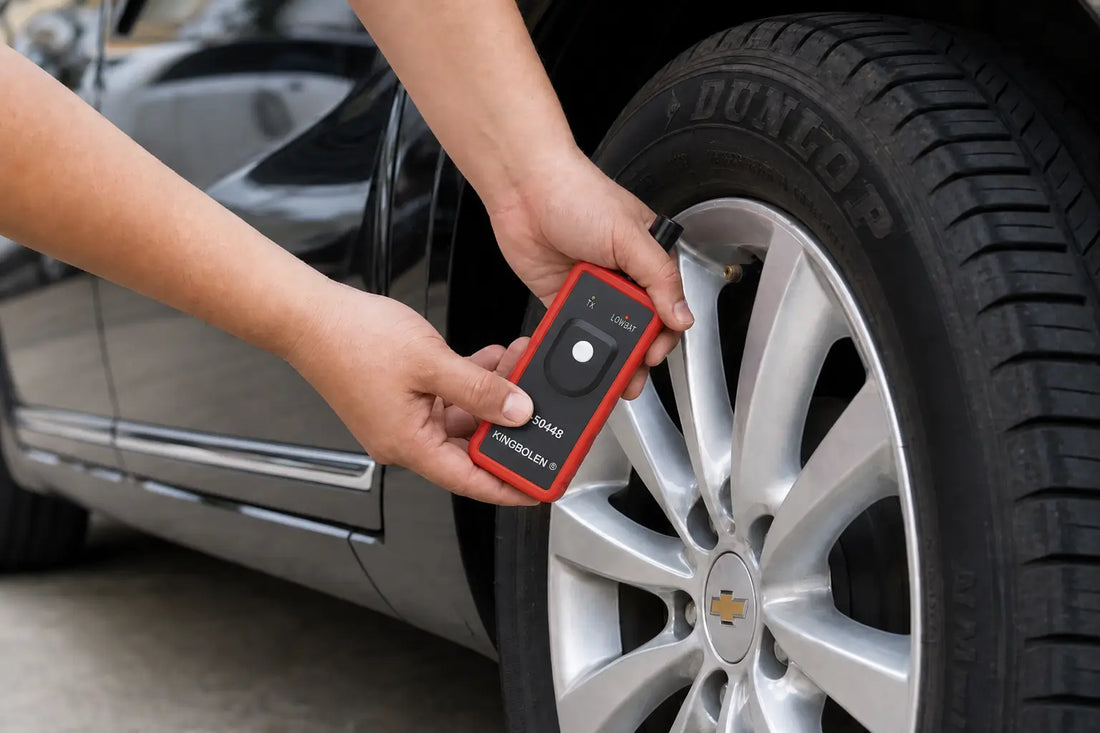

Place the tool against the tire sidewall close to the valve stem. Press and hold the activation button until the vehicle confirms that wheel.
Move to the right front, right rear, and finally the left rear. Wait for confirmation at each wheel before continuing.
Many GM procedures give a final horn confirmation after the fourth sensor. If the vehicle exits learn mode early or a wheel does not confirm, restart according to the manual rather than skipping the wheel.
Exit learn mode as instructed, recheck tire pressures, and take the prescribed verification drive. Confirm that any position-specific readings correspond to the correct wheels.
Timing matters: GM manuals commonly impose a short window for the first sensor and for the whole sequence. Prepare the tool and review the wheel order before putting the vehicle into learn mode.
Where Should You Hold the TPMS Relearn Tool?
Hold the transmitting end of the tool against or very close to the tire sidewall beside the valve stem. The sensor is mounted inside the wheel near that location. Do not point the tool at the dashboard, OBD port, or center of the wheel.
If the vehicle does not confirm the wheel, move the tool slightly around the valve-stem area and try again while the vehicle remains in learn mode. Also check the tool battery and remove nearby interference. Do not repeatedly deflate the tire unless the vehicle's exact procedure specifically requires a pressure-change method.
Why the TPMS Relearn Is Not Working
| Symptom | Likely cause | Next check |
|---|---|---|
| No wheel confirms | Vehicle not in learn mode, incompatible tool, weak tool battery, or indirect TPMS. | Verify the exact entry procedure and system type. |
| Three wheels confirm, one does not | That sensor may be incompatible, damaged, unprogrammed, or not transmitting. | Test that sensor with compatible diagnostic equipment. |
| Sequence times out | Wrong wheel order, delay between wheels, or missed confirmation. | Restart and follow the specified order without interruption. |
| Relearn completes but warning remains | Incorrect pressure, system fault, incompatible sensor, or verification drive not completed. | Measure cold pressure and follow the diagnostic procedure. |
| New universal sensor never responds | The blank sensor still needs vehicle-specific programming. | Use a programmer that supports that exact sensor and application. |
A Simple Tool for Supported GM Stationary Relearns
KINGBOLEN EL-50448
Best fit: a quick, one-button activation tool for selected compatible GM-series vehicles using a stationary relearn.
Place the supported vehicle in learn mode, activate each compatible factory direct-TPMS sensor in order, and listen for the vehicle's confirmation. It is purpose-built for this job rather than loaded with unrelated menus.
See capabilities and limits
- Designed for selected compatible GM-series vehicles with original direct TPMS; coverage is not universal.
- Supports activation for compatible 315 MHz and 433 MHz applications, but frequency alone does not confirm fit.
- It does not program blank sensors or diagnose every TPMS fault.
- It is not intended for heavy trucks, external TPMS, or unsupported aftermarket systems.
- A 9V battery is required and is not included.
Need one compact trigger tool for selected Ford and GM-family stationary relearns? Compare the EL50448 Plus. In either case, verify the exact make, model, year, sensor type, and relearn procedure before buying.
Frequently Asked Questions
Do I need a TPMS relearn tool after every tire rotation?
Can a TPMS relearn tool turn off a low-pressure light?
Can EL-50448 program a new TPMS sensor?
Why does the horn not chirp when I activate a sensor?
Does the same four-wheel order apply to every vehicle?
Is 315 MHz or 433 MHz all I need to check?
Bottom line: Confirm the system and procedure first, correct tire pressures, then enter learn mode and trigger each sensor in the specified order. For a supported GM stationary-relearn application, the KINGBOLEN EL-50448 keeps the process simple without being misrepresented as a sensor programmer or full diagnostic scanner.
Product details checked September 4, 2026. Vehicle procedures and tool coverage vary by make, model, year, TPMS design, sensor, and market. Verify compatibility and use current vehicle service information.
