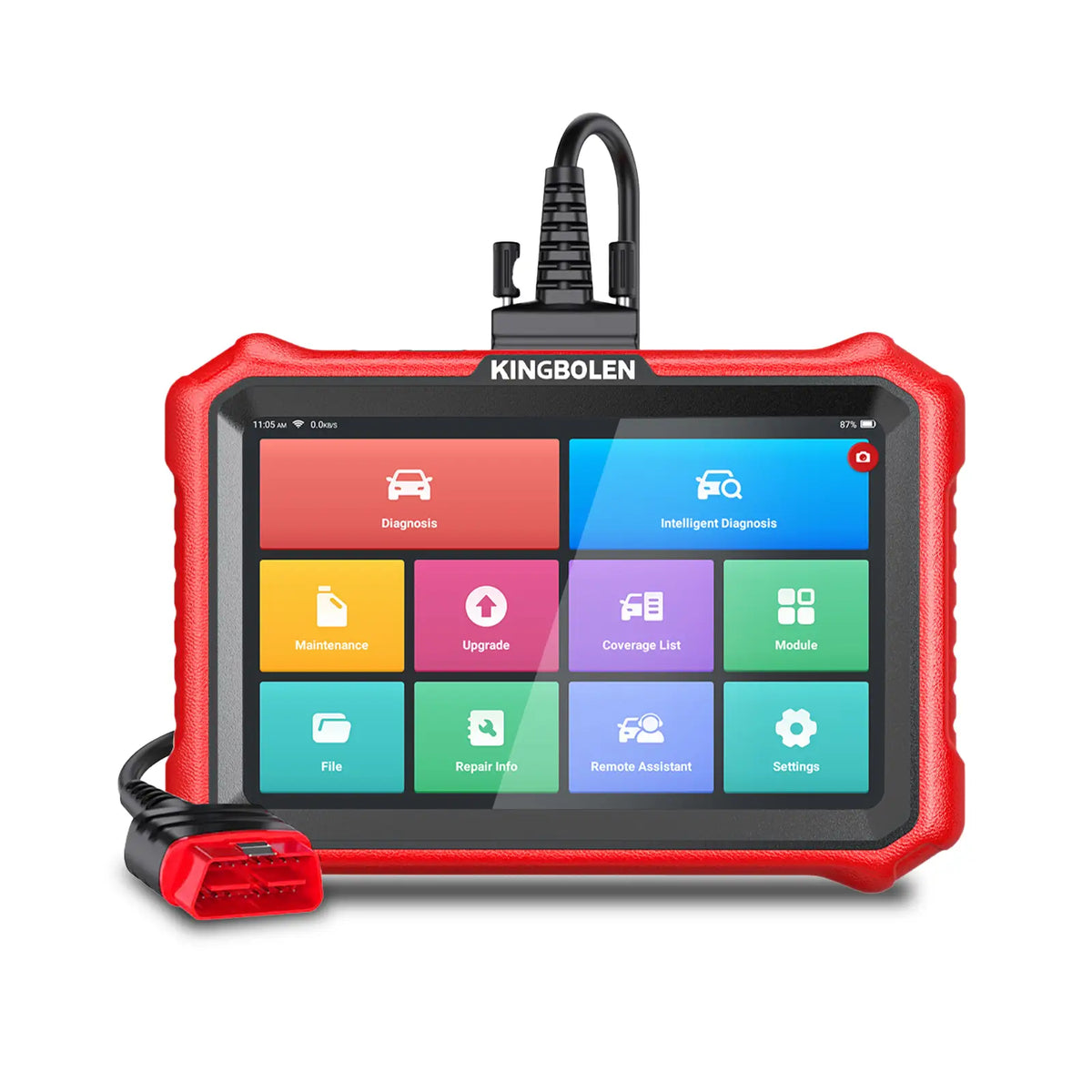

KINGBOLEN K8 ELITE

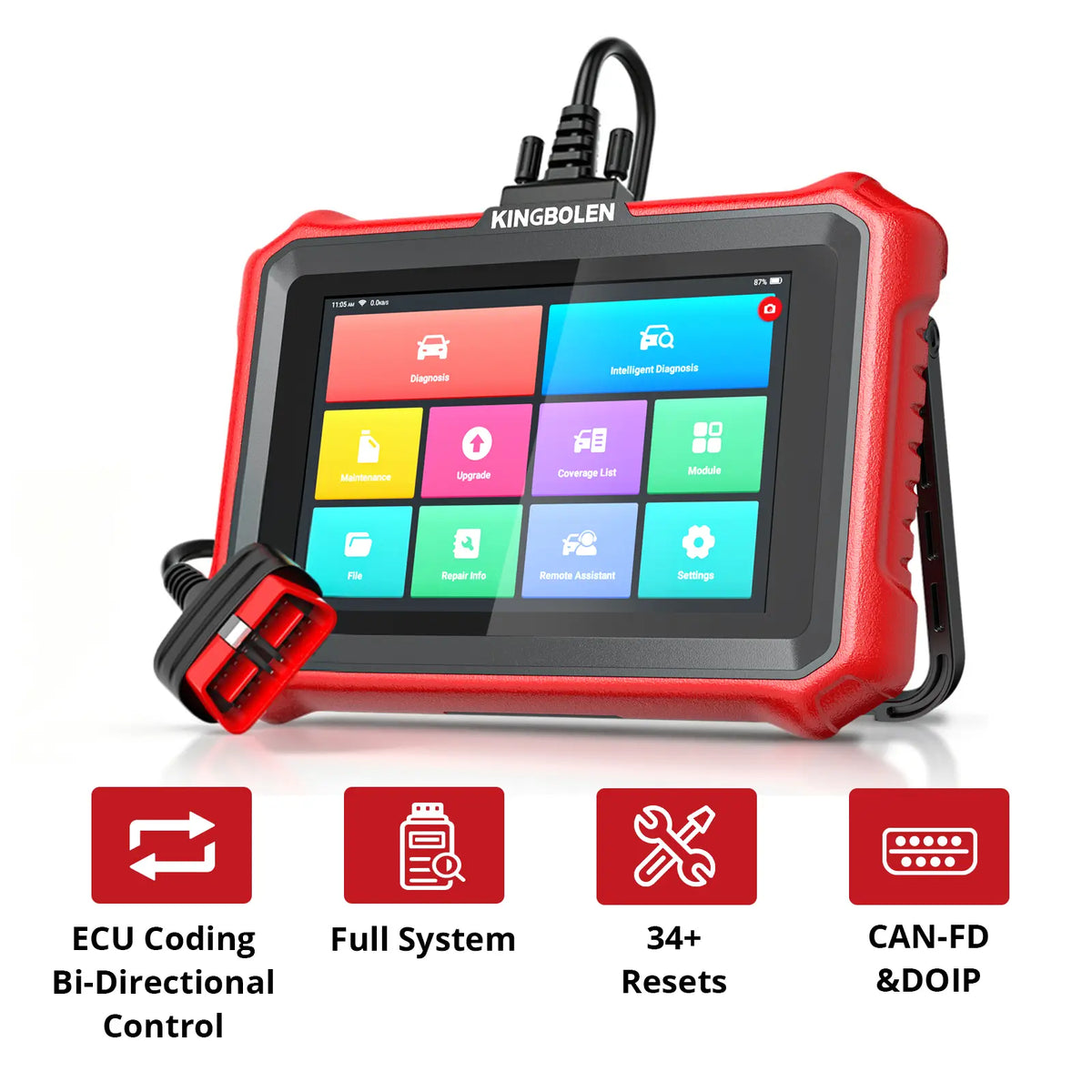

The KINGBOLEN® K8 ELITE is a professional wired OBD2 diagnostic tablet built for serious shop work. With a stable wired VCI connection, OE-level full system diagnosis, Bidirectional Test, ECU Coding, 34+ Reset Functions, CAN-FD & DoIP, and FCA AutoAuth across 150+ car brands — it's everything a technician or advanced DIYer needs, without the dealership price tag. Pay once and enjoy Lifetime Free Software Updates.

Bidirectional Test / Actuation Test

Most scanners can only read codes. The K8 ELITE goes further — it sends commands directly to your vehicle's modules to test whether components are actually working, without unnecessary disassembly. If you suspect a faulty window motor, door lock, cooling fan, or pump, command it from the tablet and confirm the response before replacing parts.

• Turn on/off radiator fan, adjust throttle, sound horn
• Open/close windows, operate mirrors, test door lock actuators
• EVAP test, pumps/valves checks, and more active tests depending on vehicle support

Full System Diagnosis

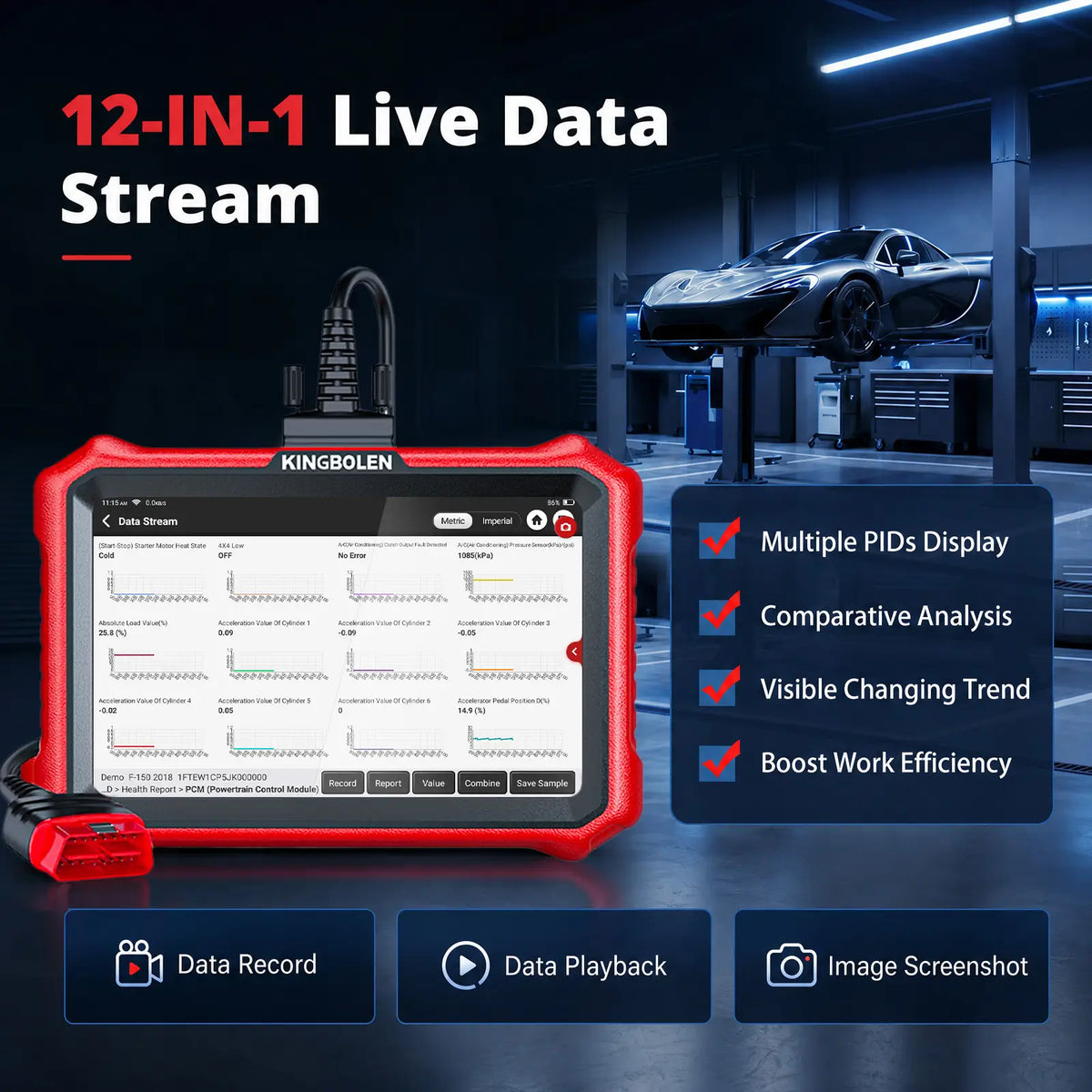

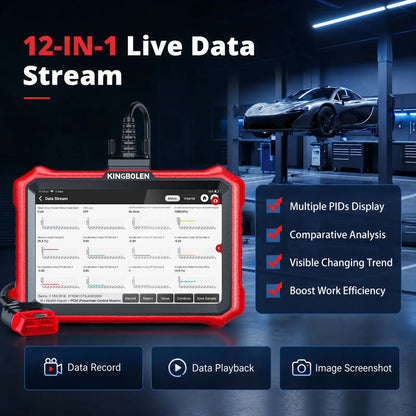

Not just the engine — the K8 ELITE scans major vehicle systems and modules. Read and clear fault codes, view live data, and capture freeze frame / ECU information across systems such as:

ENG, ABS, SRS, TCM, BCM, BMS, TPMS, SAS, AFS, A/C, Chassis, Body, and other electronic control systems (coverage varies by make/model/year).

34+ Special Reset Functions

Covers the maintenance jobs shops perform every day — so you don't need a separate service tool for common resets:

• Oil Reset: Recalculate oil life after an oil change
• EPB / Brake Pad Reset: Reset electronic parking brake and brake pad indicators
• ABS Bleeding: Bleed ABS after pump/line/fluid service
• SAS Calibration: Calibrate steering angle sensor
• Battery / BMS Reset: Clear low-battery monitoring faults after battery service
• Injector Coding / Throttle Reset / Transmission Adaptation
• TPMS / Crankshaft Relearn / DPF / IMMO and more (vehicle-dependent)

V.A.G Guided Functions also walk you through complex VW / Audi / Skoda service steps one by one.

ECU Coding (Online & Offline)

Go beyond reading codes. The K8 ELITE supports advanced coding and module matching so replacement parts and customized features can be recognized properly:

• Offline Coding: Mercedes-Benz
• Online Coding: VW, Audi, BMW
• Feature customization, performance-related configuration, and module matching
• PMI for Ford / Lincoln / Mazda: Copy and restore ECU data when replacing modules

CAN-FD & DoIP Protocol Support

Older scanners struggle with newer vehicles. The K8 ELITE has CAN-FD and DoIP built in — no extra adapters required — for faster, more reliable communication on modern platforms such as:

• CAN-FD: GM vehicles (2019+)
• DoIP: BMW F/G chassis (2017+), Jaguar & Land Rover (2017+), Volvo (2018+)

FCA AutoAuth SGW Support

Newer FCA vehicles have a Secure Gateway Module that blocks unauthorized diagnostic access. The K8 ELITE supports AutoAuth to unlock it for Chrysler, Dodge, Jeep, Alfa Romeo, and Fiat.

Note: Provides AutoAuth login portal only. Registration number must be purchased separately on the AutoAuth website.

Auto VIN & Auto Scan

No more scrolling endlessly through menus to find your car. Connect the wired VCI, start diagnosis, and use Auto VIN / Auto Scan to identify the vehicle and launch a full-system check faster. Share reports via QR code, Bluetooth, or email when available.

Stable Wired VCI Connection

The K8 ELITE uses a wired VCI for fast, stable communication between the tablet and the vehicle. This is especially important during ECU coding, module procedures, and active tests — where a dropped wireless connection could interrupt the process.

Hardware Built for Shop Use

• 8″ HD touchscreen (1280×800)
• 4GB RAM / 64GB storage
• 12,600mAh battery for all-day work
• Dual-band Wi‑Fi (2.4 & 5.0 GHz)
• Android 10.0 system + rear 8MP camera
• Built-in kickstand for hands-free use

Expandable with 5 Advanced Modules

• USB Printer — Print diagnostic reports on-site
• Videoscope — Inspect hard-to-reach areas with live video
• Oscilloscope — Advanced waveform / signal testing
• TPMS Tool — Activate, program, and diagnose tire sensors
• Bluetooth Battery Clip — Check battery health and charging system

Wide Vehicle Compatibility

Supports 150+ car brands and 41 diagnostic languages. Coverage includes American, Asian, and European vehicles (exact functions depend on make, model, and year). Send us your VIN to confirm before purchasing if needed.

Purchase With Confidence

• Lifetime Free Software Updates
• 365-Day Warranty
• 30-Day Return Policy
• Fast Customer Support
