P0300 means the engine computer detected random or multiple-cylinder misfires. It does not identify one failed part. Worn ignition components, an air leak, incorrect fuel delivery, injector trouble, sensor input or low compression can all produce the same code. Save the freeze-frame data and related codes before replacing anything. If the check-engine light is flashing or the engine is shaking badly, reduce load, stop safely and arrange diagnosis as soon as possible.
| Quick fact | Answer |
|---|---|
| Code definition | Random/Multiple Cylinder Misfire Detected |
| Affected system | Engine combustion and misfire monitoring |
| Typical first checks | Related DTCs, freeze frame, misfire pattern, ignition condition, fuel trims and visible air leaks |
| Can you drive? | Avoid continued driving if the MIL flashes, the engine shakes, power drops sharply or raw-fuel odor is present |
| Common mistake | Replacing spark plugs or coils without first identifying whether the pattern is ignition, air, fuel or mechanical |
What Does the P0300 Code Mean?
P0300 is a generic OBD-II powertrain diagnostic trouble code for random or multiple-cylinder misfire detected. During normal combustion, each cylinder contributes to crankshaft acceleration. The engine control module uses crankshaft-speed changes—and, depending on the vehicle, camshaft and other inputs—to recognize firing events that contribute less torque than expected.
The word “random” can be misleading. P0300 may mean that misfires are moving among cylinders, affecting several cylinders, or cannot be assigned consistently to one cylinder. If the computer can identify a particular cylinder, it may also store P0301, P0302 and similar cylinder-specific codes.
A code identifies the failed test, not the failed component. P0300 does not automatically mean “replace the spark plugs.” The correct diagnosis depends on the other codes, when the misfire occurs, which cylinders accumulate counts and what the fuel and sensor data show.
How Serious Is P0300, and Can You Keep Driving?
Treat P0300 as a high-priority fault. A mild intermittent misfire with a steady check-engine light may allow a short, gentle trip to a safe location or repair facility. A severe active misfire can send unburned fuel into the exhaust and overheat the catalytic converter.
Stop driving and arrange assistance if the check-engine light flashes continuously, the engine shakes violently, repeatedly stalls, loses substantial power, overheats or produces a strong raw-fuel smell. Reduce speed and load immediately. Follow the vehicle owner’s manual for model-specific warning-light instructions.
Common P0300 Symptoms
- Steady or flashing check-engine light
- Rough idle, shaking or vibration
- Hesitation, stumbling or reduced acceleration
- Hard starting or intermittent stalling
- Reduced fuel economy
- Fuel smell from the exhaust during a severe misfire
- P0301–P0312 or fuel-trim, injector, ignition and sensor codes stored with P0300
Some vehicles can store P0300 without an obvious drivability symptom. Freeze-frame information is especially useful in that situation because it records conditions such as engine speed, load and temperature when the fault was detected.
What Causes a P0300 Code?
The likely cause changes with the misfire pattern. A lean misfire across several cylinders calls for a different test path than one cylinder with high counts or an engine that misfires only under heavy load.
| Cause group | Examples | Useful clues |
|---|---|---|
| Ignition | Worn or fouled spark plugs, damaged wires, weak coils, moisture or incorrect plug gap | Worse under load; cylinder-specific codes; visible plug or boot damage |
| Unmetered air | Split vacuum hose, intake-gasket leak, PCV fault or brake-booster leak | Rougher at idle; positive fuel correction that may improve as engine speed rises |
| Fuel delivery | Low pressure, restricted supply, contaminated fuel or weak pump | Multiple cylinders affected, especially under load; lean data or pressure outside specification |
| Injector problem | Restricted, leaking, electrically faulty or incorrectly controlled injector | One or more cylinders stand out; injector circuit or mixture codes may also appear |
| Air and engine sensors | Incorrect MAF/MAP input, crankshaft or camshaft signal problem, or sensor-circuit fault | Implausible live data, signal codes or a repeatable rpm/load pattern |
| Mechanical condition | Low compression, valve leakage, incorrect cam timing, head-gasket trouble or excessive carbon | Misfire remains after ignition and fuel checks; abnormal compression or leak-down result |
| Vehicle-specific issue | Software calibration, connector fault or a documented technical service bulletin | Known year/engine pattern or a fault that occurs only under narrowly defined conditions |
P0300 vs. P0301, P0302 and Other Cylinder Codes
P0301 indicates cylinder 1, P0302 indicates cylinder 2, and the pattern continues according to cylinder number. P0300 may appear by itself or alongside these codes. Do not assume the highest code number identifies firing order or physical cylinder location; use the manufacturer’s cylinder-identification information.
How to Diagnose P0300 Step by Step
- Save the diagnostic evidence. Read stored, pending and permanent codes. Record freeze-frame data and readiness status before clearing anything. Related cylinder, mixture, injector, crank/cam or sensor codes can change the entire test plan.
- Judge the immediate risk. Note whether the MIL is steady or flashing and whether the engine is shaking, stalling or losing power. Do not continue a road test during a catalyst-damaging active misfire.
- Find the pattern. If supported, inspect cylinder misfire counters or manufacturer-specific data at idle and under the condition shown in the freeze frame. Determine whether one cylinder, one bank or many cylinders are affected. Availability and naming vary by vehicle.
- Inspect before testing parts. With the ignition off and the engine cool, look for loose coil connectors, damaged plug wires, water or oil in plug wells, disconnected intake ducts, split vacuum hoses and recent-work mistakes.
- Review live air-and-fuel data. Compare short- and long-term fuel correction, airflow or manifold-pressure data, oxygen-sensor information and engine temperature under the manufacturer’s test conditions. Focus on patterns rather than applying one universal number to every vehicle.
- Test the ignition system safely. Follow the service manual for spark-plug inspection and coil tests. A controlled coil or plug swap may help on some engines, but only when components are interchangeable and the procedure is safe. Do not disconnect ignition components on a running engine unless the manufacturer directs it.
- Verify fuel supply and injector operation. Measure fuel pressure and volume to the published specification and test injector circuits or balance when appropriate. Fuel systems are pressurized and flammable; professional service is the safer choice without the correct equipment and procedure.
- Check mechanical condition. If ignition, air and fuel tests pass, use compression, relative-compression, leak-down and cam-timing checks as required. A scan tool narrows the direction, but it cannot prove mechanical sealing by itself.
- Check vehicle-specific information. Search factory service information and applicable technical service bulletins using the exact year, make, model and engine. Some false or narrowly triggered misfire indications require a defined relearn or calibration procedure—not random parts replacement.
What Scan Data Is Most Useful?
- Freeze-frame engine speed, load, coolant temperature and vehicle speed
- Stored and pending cylinder-specific misfire codes
- Misfire counters or Mode $06 results when the vehicle and tool expose usable data
- Short- and long-term fuel correction by bank
- MAF or MAP data, oxygen-sensor information and commanded fuel status
No single data item diagnoses every P0300. For example, positive fuel correction can support a lean-condition theory, but it does not by itself prove a vacuum leak or weak fuel pump.
Common P0300 Diagnostic Mistakes
- Replacing all coils or plugs before saving freeze-frame data
- Assuming P0300 always means every cylinder is misfiring
- Ignoring intake leaks, fuel pressure and mechanical compression
- Using universal fuel-trim or misfire-count limits without factory specifications
- Clearing the code repeatedly while the MIL is flashing
How Do You Fix P0300?
There is no single P0300 repair. The correct fix is the repair that resolves the confirmed cause:
- Replace worn or damaged spark plugs with the specified type and gap
- Repair failed coils, wires, boots, connectors or ignition power/ground faults
- Repair a verified intake, PCV or vacuum leak
- Correct fuel pressure, fuel quality or injector faults
- Repair inaccurate sensor signals or damaged wiring
- Correct compression, valve, head-gasket or mechanical-timing problems
- Perform a manufacturer-specified relearn or software update when applicable
After repair, clear the codes only when appropriate, repeat the operating conditions recorded in the freeze frame, and scan again for pending faults. A light that stays off immediately after clearing is not proof of repair; the relevant monitor must run and pass.
Typical P0300 Repair Costs
These are broad U.S. planning ranges for common outcomes, not a diagnosis or quote. Labor rate, engine layout, parts quality and related damage can change the total substantially.
| Possible repair | Broad planning range (USD) |
|---|---|
| Diagnostic testing | $100–$250+ |
| Spark-plug replacement | $150–$500+ |
| Ignition coil replacement | $150–$450+ per coil, depending on access |
| Vacuum or intake leak repair | $100–$800+ |
| Fuel injector repair or replacement | $250–$1,200+ |
| Internal engine or mechanical-timing repair | $1,000–$4,000+ |
Which OBD2 Scanner Helps Diagnose P0300?
A basic code reader can confirm P0300, but diagnosis improves when you can preserve freeze-frame information, watch changing data and access supported manufacturer-specific engine information. The scanner still does not test spark quality, fuel pressure or compression directly; it helps you decide what physical test should come next.
Practical recommendation: EDIAG Elite is the better fit for most owners who want portable code, freeze-frame and live-data diagnosis from a compatible phone. K8 Pro is the stronger choice for technicians and advanced users who work on vehicles regularly and need a dedicated tablet and deeper supported workflows.

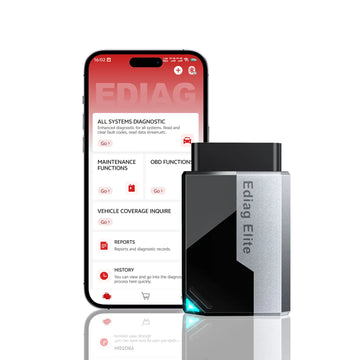

KINGBOLEN EDIAG Elite
Best fit for DIY diagnosis from a compatible iOS or Android device.
- Freeze frame
- 4-in-1 live data
- Full OBD-II functions
Why it fits a P0300 workflow
- Records the conditions present when P0300 was stored.
- Graphs up to four available data streams together for pattern comparison.
- Provides full-system diagnostics and supported active tests beyond a basic engine-only reader.
- Includes lifetime online updates with no subscription, according to the current product page.

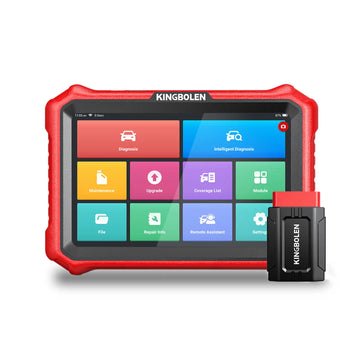

KINGBOLEN K8 Pro
Best fit for advanced DIY users, technicians and recurring diagnostic work.
- Dedicated 8-inch tablet
- Bidirectional tests
- Full-system scan
When the professional platform is worthwhile
- Supports deeper live-data and manufacturer-specific diagnostic workflows on compatible vehicles.
- Provides supported bidirectional component tests and 34+ service functions.
- Uses a wireless VCI with a dedicated Android diagnostic tablet.
- Supports CAN FD and DoIP on compatible vehicles and includes lifetime updates.
Which should you choose? For one or a few family vehicles, start with EDIAG Elite. Choose K8 Pro when a dedicated shop-style tablet, broader supported workflows and regular active testing justify the higher investment. Confirm coverage for the exact year, make, model and function before buying.
Need to decode another fault? Use the EDIAGTOOL DTC Code Library. If you have already completed the repair, follow the correct procedure for clearing and verifying a check-engine light instead of erasing the evidence first.
Frequently Asked Questions
What is the most common cause of P0300?
Can a vacuum leak cause P0300?
Can bad fuel cause a random misfire?
Why do P0300 and P0301 appear together?
Will clearing P0300 fix the rough running?
Can an OBD2 scanner tell me which part is bad?
Bottom line: P0300 is a warning that combustion is unstable across random or multiple cylinders—not an instruction to replace one part. Save the evidence, identify the misfire pattern, separate ignition, air, fuel and mechanical causes, and stop driving if the MIL flashes or the engine runs severely rough.
Technical References
- Ford OBD-II System Operation Summary — Misfire Monitor
- U.S. EPA — On-Board Diagnostics and a Flashing Malfunction Indicator Lamp
- SAE J2012 — Diagnostic Trouble Code Definitions
- EDIAG Elite current product specifications
- K8 Pro current product specifications
This article provides general educational information. Diagnostic thresholds, cylinder numbering, test procedures and safe-driving instructions vary by vehicle. Use factory service information or a qualified technician for the exact vehicle.
