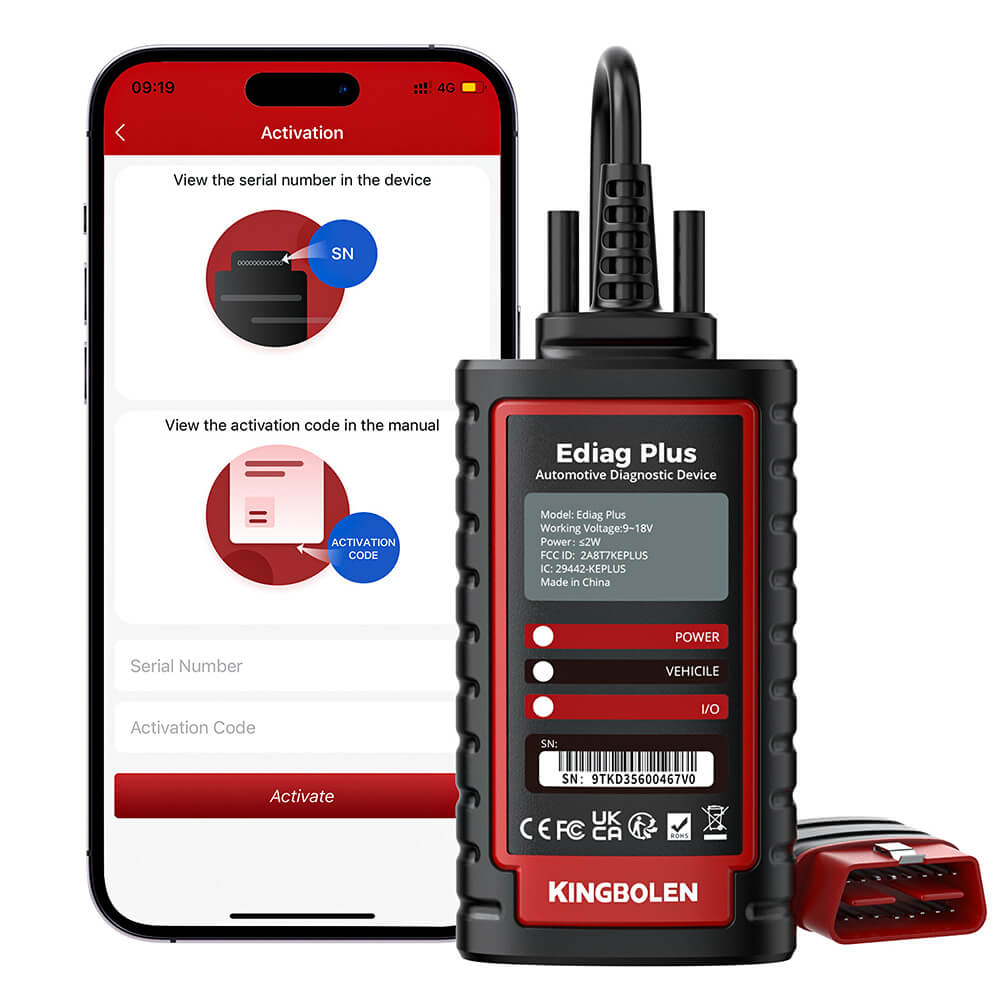

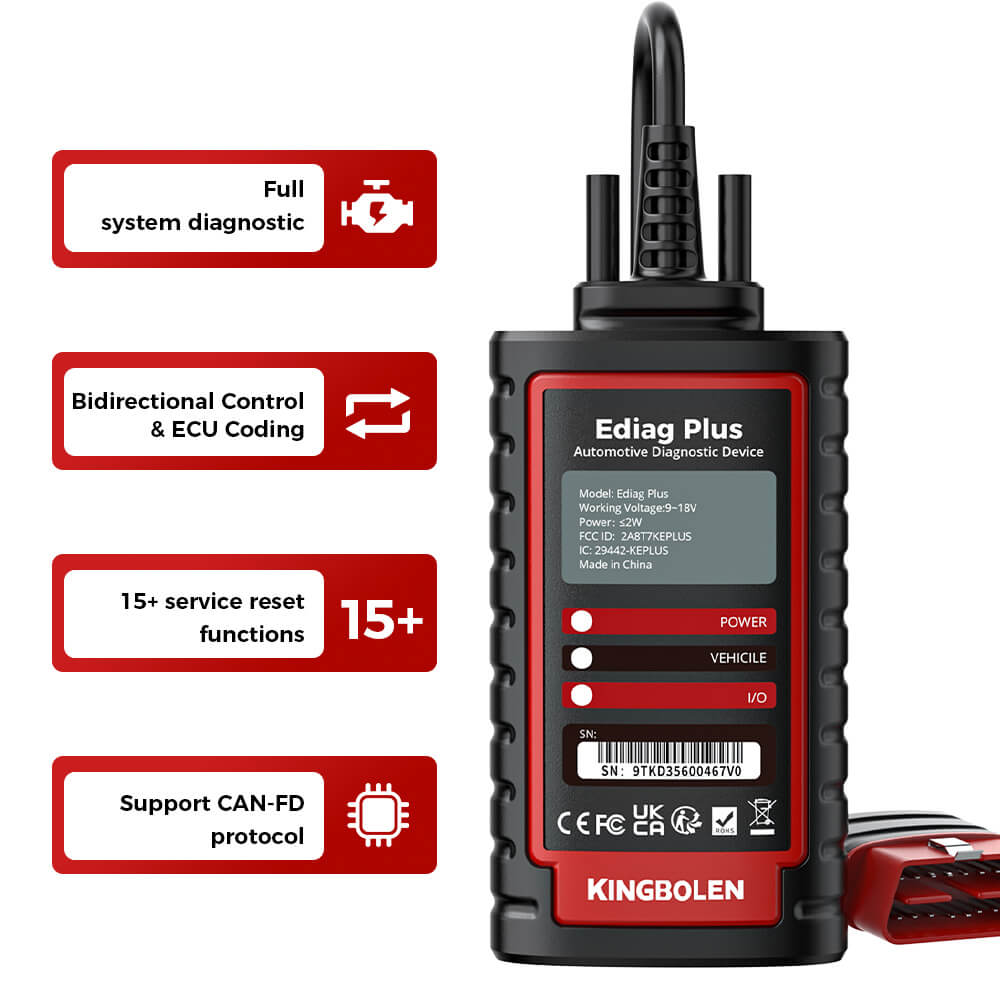

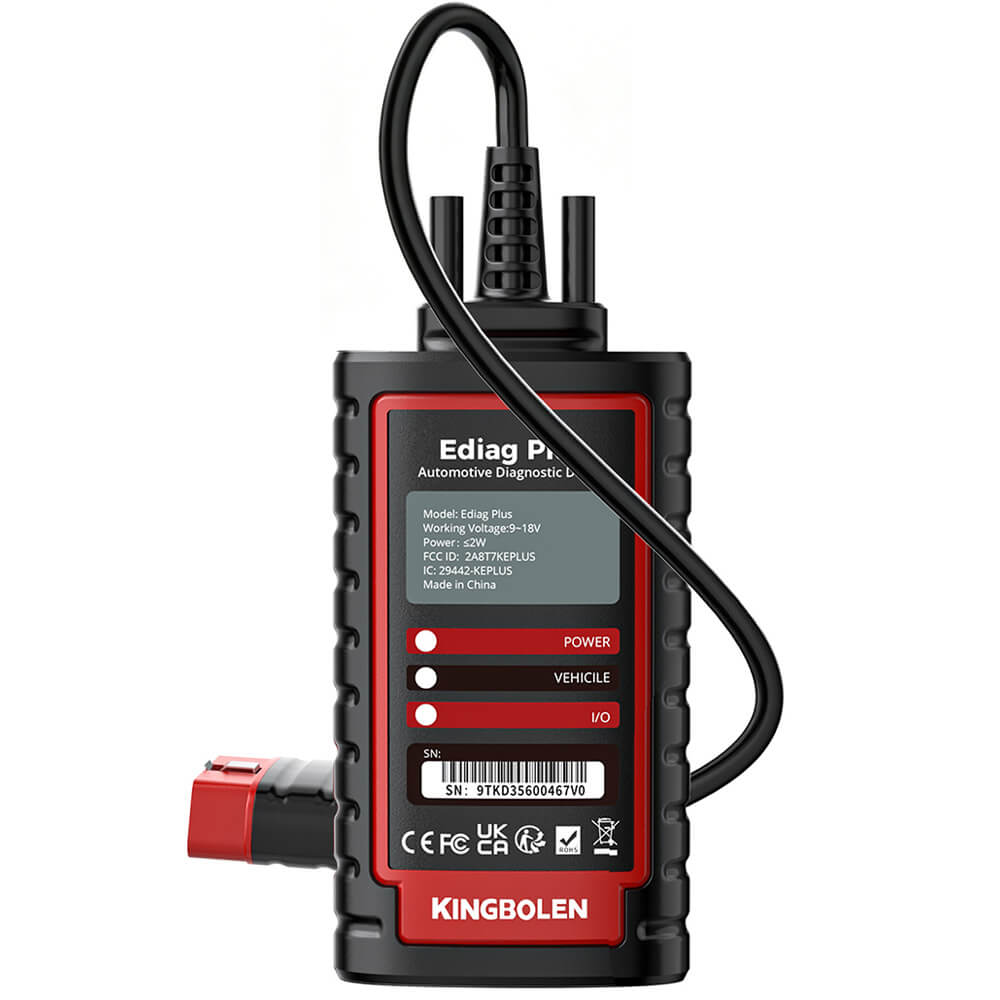

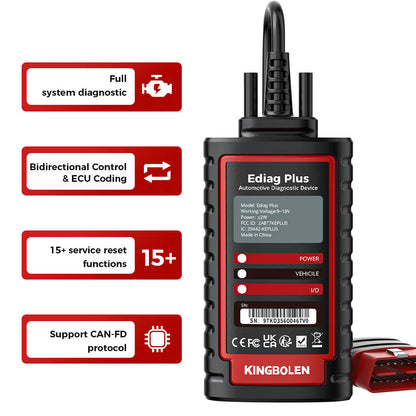

KINGBOLEN EDIAG PLUS

2026 Upgraded — The KINGBOLEN® EDIAG Plus is a next-generation Bluetooth OBD2 scanner built for serious diagnostics. Equipped with CAN-FD Protocol, Bluetooth 5.1 dual mode, double-sided indicator light, and an upgraded soft rubber sleeve, it connects wirelessly to your Android or iOS device and transforms your phone into a professional-grade scan tool. With Bidirectional Test, 15+ Reset Functions, ECU Coding, and Full System Diagnosis across 120+ car brands — it's everything a technician or advanced DIYer needs, without the dealership price tag.

Bidirectional Test / Actuation Test

Most scanners can only read codes. The EDIAG Plus goes further — it sends commands directly to your vehicle's systems to test whether components are actually working, without touching a single wire or removing a single part. If you suspect a faulty window motor, door lock, or cooling fan, just command it from your phone and see if it responds.

• Turn on/off radiator fan, adjust throttle, sound horn
• Open/close windows, operate mirrors, test door lock actuators
• Injector Test, interior & exterior lights, Headlight Test, Wiper Test

Full System Diagnosis

Not just the engine — the EDIAG Plus scans every system in your vehicle. Read and clear fault codes, view live data, and capture freeze frame data across:

ENG, ABS, SRS, TCM, BCM, BMS, TPMS, SAS, AFS, EBD, TCS, A/C System, Chassis, Body, and Electrical/Electronic Equipment Systems.

OBD2 Full Functions (10 Modes)

1. Read Codes: Detailed description of Diagnostic Trouble Codes (DTCs)
2. Clear Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors
3. Data Stream: Reads and displays live PCM data stream with graphical plotting and freeze frame storage
4. I/M Readiness Status: Shows whether emissions-related systems are operating properly and ready for inspection
5. Read Live Data Stream: Live graphic (waveform) display of continuous vehicle data
6. View Freeze Frame Data: Records vehicle conditions at the time an emission-related fault occurs
7. O2 Sensor Test: Retrieves and displays O2 sensor monitor test results from the vehicle's on-board computer
8. On-Board Monitor Test: Retrieves test results for emission-related Powertrain components and systems
9. Read Vehicle Information: Displays VIN, CID (Calibration ID), CVN (Calibration Verification Number), etc.
10. Component Test: Actuates certain vehicle components via scanner commands to test operability

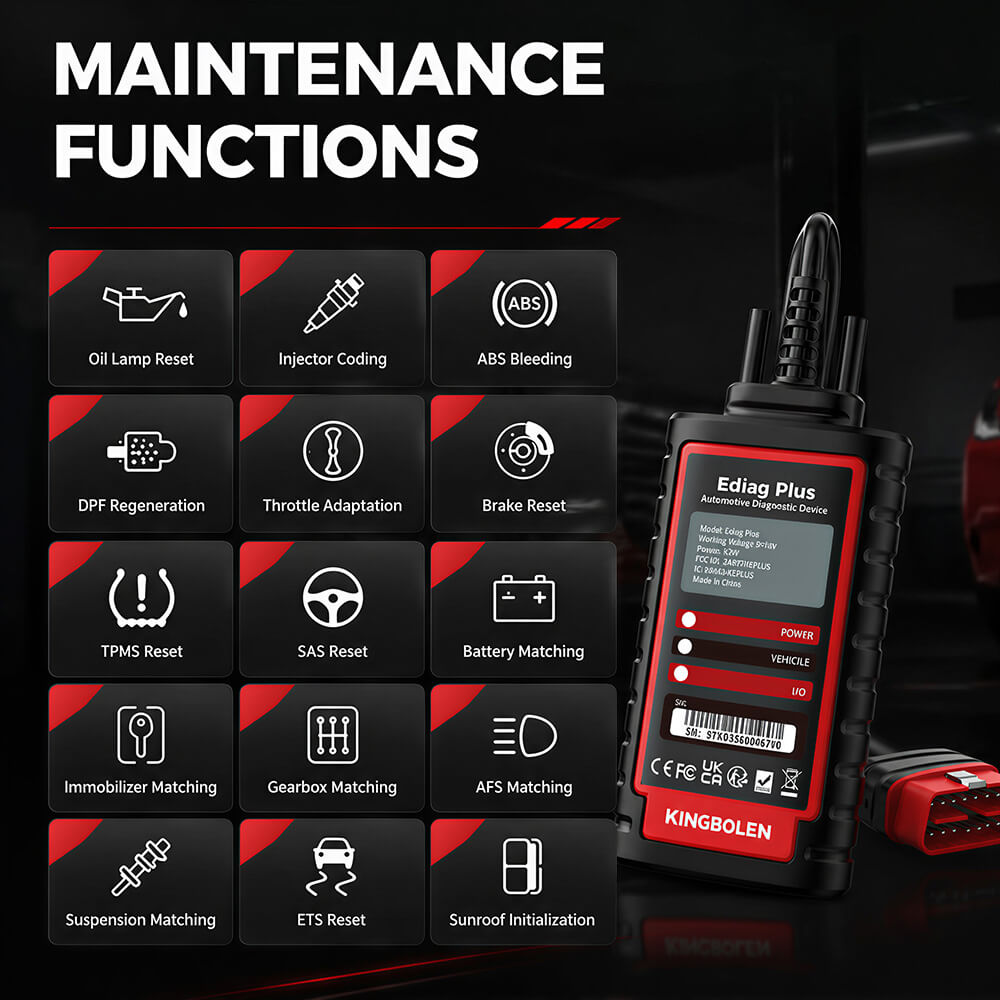

15+ Special Reset Functions

1. Oil Light Reset: Recalculates engine oil life system after an oil change
2. TPMS Reset: Resets tire pressure fault light after maintenance
3. Brake Pad Reset: Resets brake pad indicator after sensor or servo motor replacement
4. SAS Calibration: Calibrates steering angle sensor and clears fault memory
5. Battery Reset: Resets battery monitoring unit and clears low battery fault information
6. ABS Bleeding: Exhausts air from ABS system to restore braking sensitivity after ABS component replacement
7. ETS Learning: Initializes throttle actuator and restores ECU default learning values
8. Injector Coding: Re-codes injector nozzles after ECU or injector replacement for precise fuel control
9. DPF Regeneration: Forces diesel particulate filter regeneration to clear blockages and restore engine performance
10. Immobilizer Matching: Matches new keys or immobilizer components to the ECU after replacement
11. Sunroof Initialization: Sets sunroof locking, rain-closing, memory function, and temperature threshold
12. Suspension Matching: Calibrates body height sensor after air suspension component replacement or misalignment
13. Transmission Learning: Compensates transmission shift quality after disassembly or battery disconnection
14. AFS Headlight Matching: Initializes the adaptive headlamp system
15. And more functions available depending on vehicle model

Auto VIN & Auto Scan

No more scrolling through menus to find your car. Plug in, open the app, and the EDIAG Plus automatically reads your VIN and launches a full-system scan. When it's done, a complete vehicle health report is generated automatically — ready to share or print via email. If your model isn't auto-detected, manual selection is always available.

4-in-1 Live Data Stream

Watch Engine, ABS, SRS, and Transmission data all on one screen in real time. Instead of switching between menus, you see everything at once — making it far easier to spot abnormal readings and pinpoint the root cause of a fault code.

ECU Coding (Online & Offline)

• Online Feature: Provides correct vehicle configuration codes via server for VW and Audi chassis numbers to ensure proper function
• Offline Feature: Compatible with VW, Audi, Mercedes, BMW, Land Rover, Jaguar, Porsche
• Activate or disable additional vehicle capabilities
• Match and initialize component adaptive data after replacement

CAN-FD Protocol Support

Older scanners can't communicate with the latest GM, Ford, and Chevrolet models — the EDIAG Plus can. CAN-FD handles up to 64 bytes per frame (vs. 8 bytes on standard CAN), enabling faster, more reliable data transfer on modern vehicles. Supported models include:

• 2021–2025 Chevrolet Tracker / Suburban / Tahoe
• 2020–2026 Chevrolet Onix 1.0L / 1.2L
• 2020–2025 Cadillac Escalade / Escalade ESV
• 2021–2025 GM Yukon / Yukon XL
• 2021–2026 Ford F-150
• And more...

FCA AutoAuth SGW Support

FCA vehicles after 2019 have a Security Gateway Module that blocks unauthorized diagnostic access. The EDIAG Plus supports AutoAuth to unlock it, giving you full read/clear and data stream access on:

Chrysler, Dodge, Jeep, Alfa Romeo, Fiat

*Only provides AutoAuth login portal. Registration number must be purchased separately on the AutoAuth website.

Wide Vehicle Compatibility

Works with 1996 and newer vehicles (OBD2/EOBD/JOBD/CAN-FD), 120+ car brands, 10,000+ models, 12V cars including light trucks and hybrids.

• American: Ford, GM, Chevrolet, Chrysler, Dodge, Jeep, Cadillac, Buick, GMC, Lincoln, Saturn, etc.
• Asian: Toyota, Honda, Hyundai, Nissan, Mazda, Mitsubishi, Subaru, Suzuki, Lexus, Infiniti, Acura, Isuzu, etc.
• European: BMW, Mercedes-Benz, Audi, VW, Porsche, Volvo, Land Rover, Jaguar, Rolls-Royce, Alfa Romeo, Fiat, Peugeot, Renault, Citroen, Mini, Skoda, Seat, Opel, Dacia, etc.
